NLTL-6273
NLTL-6273
Marki Microwave
GaAs MMIC Non-Linear Transmission Line

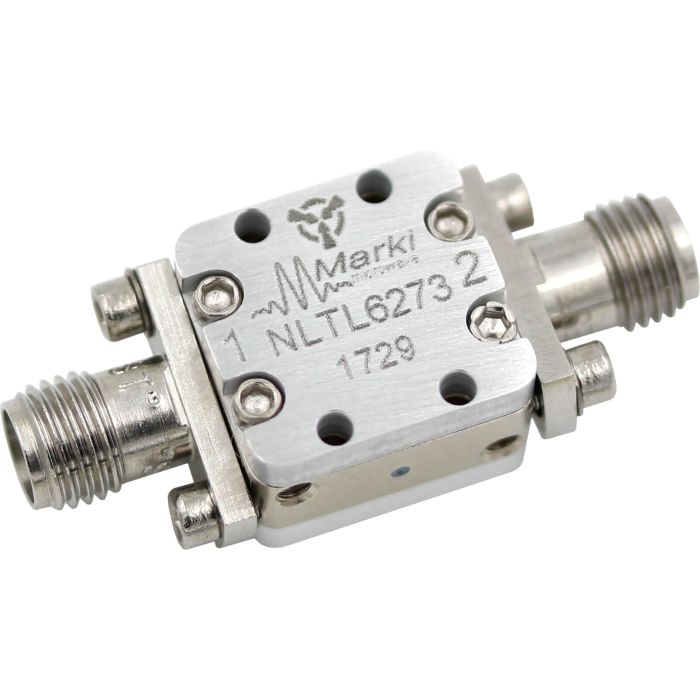

NLTL-6273 is a MMIC non-linear transmission line (NLTL) based comb generator. This NLTL offers excellent phase noise performance over a low 0.7 to 5 GHz input frequency range with output tones beyond 40 GHz.
NLTL-6273 is fabricated with GaAs Schottky diode based varactors on a 2.28 mm x 3.13 mm substrate.
Both wire bondable die and connectorised modules are available.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| RoHS | Y |
| Key Features |
|
| Applications |
|
| Minimum Input (GHz) | 0.7 |
| Maximum Input (GHz) | 5 |
| Minimum Output (GHz) | 0.7 |
| Maximum Output (GHz) | 40 |
| Drive Level (dBm) | 20 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
