Tektronix P6022 Current Probe with termination| APC Technology Group

P6022

P6022

Tektronix

Current Probe with termination

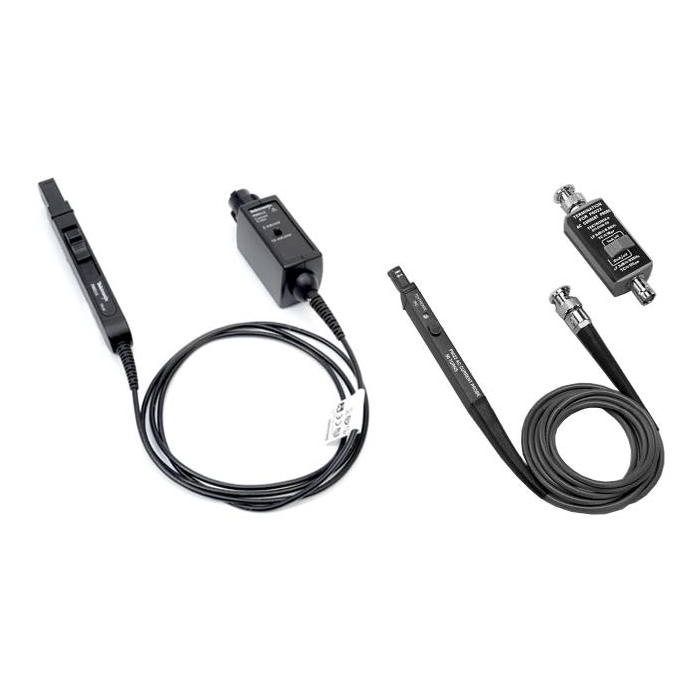

The Tektronix P6022 Current Probe provides versatile AC current measurements. The P6022 probe provides accurate current measurements over a wide range of frequencies. P6022 allows current measurements without breaking the circuit by clipping onto the current carrying conductor. Shielded probe heads are not grounded when the slides are in their open positions, eliminating accidental grounding of the circuit under test.

Tektronix P6022 Highlights

  • 935 Hz to 120 MHz
  • 2.12 A RMS, 100 A peak, 1 mA sensitivity

With a head size of 0.47 in. x 0.25 in. (10 mm x 6 mm, about half the size of the P6021A) and a bandwidth of 935 Hz to 120 MHz, the P6022 is ideal for measuring currents in compact, high-performance circuits. Passive termination output is switchable between 1 mA/mV and 10 mA/mV.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Segment Current_Probes
Product Family Current Probes
Key Features
  • For 1 MΩ inputs
  • Shielded probe head
  • AC only
  • Split core construction allows easy circuit connection
  • 1.5 m (5 ft) cable
Bandwidth 120 MHz
Whats Included
  • 6 in. ground lead
    • 196-3521-00
  • Instruction manual
    • 071-3004-00 (P6021A)
    • 070-0948-03 (P6022)
  • Termination
    • 011-0106-00 (P6022 only)
Applications
  • Motor drives
  • Power inverters/converters
  • Power supplies
  • Avionics
Rise Time < 2.9 ns
Cable Length 1.5m
Accessory Type
More Information
Attribute Value
Data Sheet Click here to view
