TAP1500
TAP1500
Tektronix

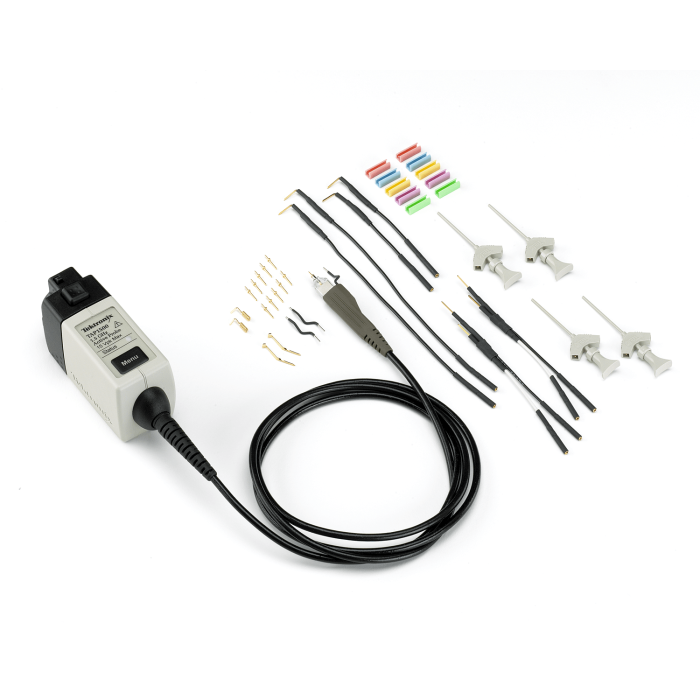

1.5 GHz Active Probe
- Outstanding electrical performance
- ≥1.5 GHz probe bandwidth
- <267 ps rise time
- ≤1 pF input capacitance
- 1 MΩ input resistance
- -8 V to +8 V input dynamic range
- -10 V to +10 VDC input offset range
- Versatile mechanical performance
- Small compact probe head for probing small geometry circuit elements
- DUT attachment accessories enable connection to SMDs as small as 0.5 mm pitch
- Robust design for reliability
- Easy to use
- Connects directly to oscilloscopes with the TekVPI™ probe interface
- Provides automatic units scaling and readout on the oscilloscope display
- Easy access to oscilloscope probe menu display for probe status/diagnostic information, and to control probe DC offset
- Remote GPIB/USB probe control through the oscilloscope
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | Low Voltage Single Ended Probes |
| Product Family | Low Voltage Single Ended Probes |
| Bandwidth | >1.5 GHz |
| Applications |
|
| Rise Time | <267 ps |
| Probe Attenuation | 10X ±2% |
| Input Impedance | <1 pF |
| Cable Length | 1300mm |
| Maximum Voltage | ±15 V |
| Accessory Type | Low Voltage Single Ended Probes |
