P9000-01

This product is available in 5-7 weeks

Key Features

• Measurement Functions: Waveform monitor output only
• Frequency Characteristics (Wave Mode): DC to 100 kHz, -3 dB
• Division Ratio: 1000:1 or 100:1 (user selectable)
• DC Amplitude Accuracy: ±0.5% f.s.
• Input Resistance and Capacity: 10.5 MΩ, 5 pF or less (at 100 kHz)
• Maximum Allowable Input: 1000 V AC/DC
• Max. Rated Voltage to Earth: 1000 V AC/DC (CAT III)
• Operating Temperature Range: -40°C to 80°C

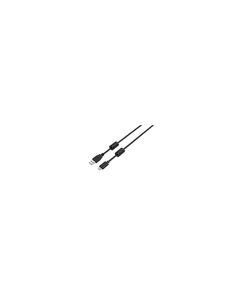

• Power Supply Options: o AC Adapter (Z1008), USB, External DC (2.7V to 15V DC)
• Dimensions: 128 mm (W) × 36 mm (H) × 22 mm (D)
• Mass: 170 g
• Cord Length: Input 70 cm; Output 1.5 m

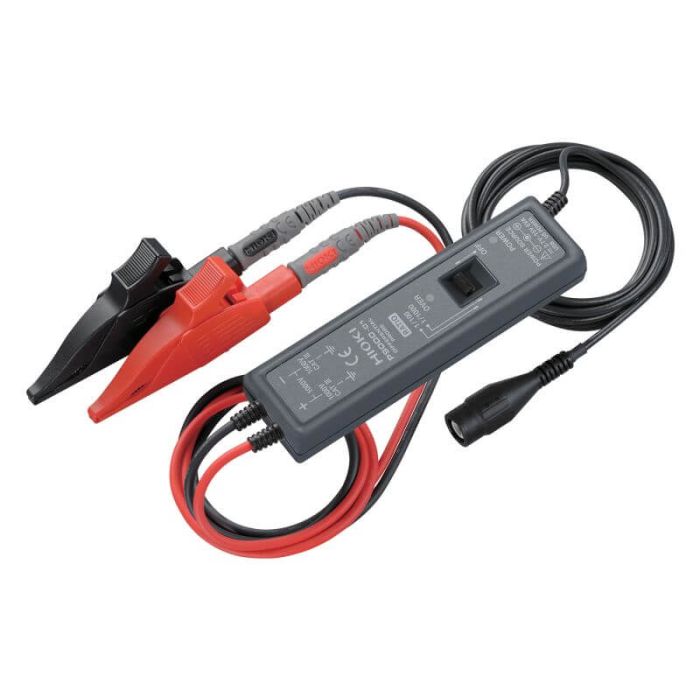

The Differential Probe P9000-01 is designed to offer superior flexibility for waveform monitoring in high-voltage environments. Ideal for use with Hioki Memory Reorders and Dataloggers, it allows accurate and reliable measurement in various industrial applications, such as electric vehicles, solar power systems, and commercial power circuits.

Compact and lightweight, this probe offers 1000 V AC/DC measurements with a choice between 1000:1 and 100:1 division ratios. With a robust operating temperature range, it ensures performance even in challenging conditions.
