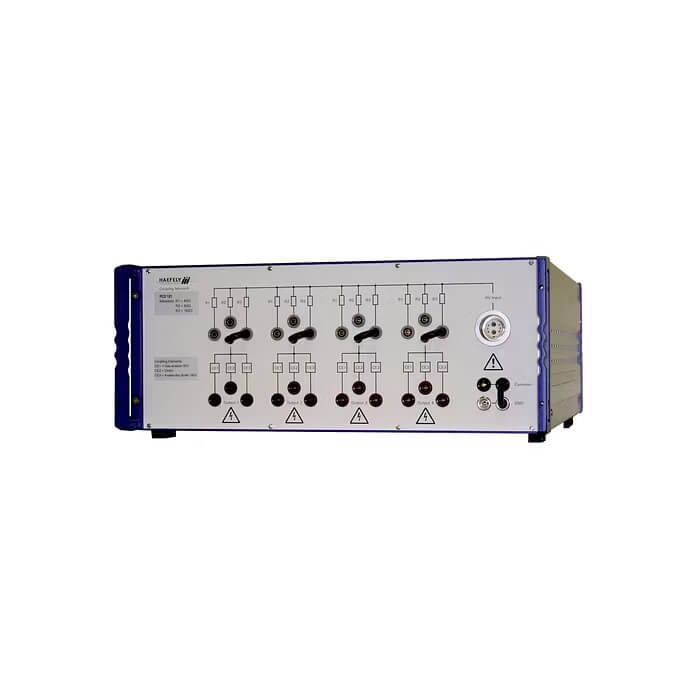

PCD 122 - Coupling Network for Symetrical Data And Control lines
The Haefely PCD 122 is used for coupling of 10/700μs impulses up to 6.6kV peak onto unshielded symmetrical data and signal lines according IEC/EN and ITU standards. Up to 2 pairs / 4 wires can be tested simultaneously
To obtain maximum flexibility, only coupling elements are included in the PCD 122. Decoupling circuits, which depend on the EUT to be tested, can be placed separately in the test setup.
Manual coupling path switching for common mode (longitudinal, line to earth) and for differential mode (transverse mode, line to line) testing.
Default coupling elements are gas arrestors and breakdown avalanche diodes. The coupling elements can be selected easily. The direct coupling output allows the customer to use their own coupling elements.
Key Features
- 10 / 700 µs impulse
- Serial resistors included
- Up to 4 wires can be tested
- Signal Bandwidth up to > 10 MHz
- Low capacitive load on the EUT lines
- Manual coupling path selection
For more information about this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 450 x 570 x 195 mm (17.7 x 22.4 x 7.7 in) |
| Weight | Approx.. 10 kg net (22 lb) |
| Impulse Amplitude | Max. 6.6 kV |
| Device |
Serial Resistor: 4 x 25 Ω, 4 x 50 Ω, 4 x 100 Ω Coupling Elements: Gas arrestor 90 V, Avalanche breakdown diodes (ABDs) Signal Bandwidth: Up to > 10 MHz - With gas arrestors as coupling elements, Up to > 1 MHz - With ABDs as coupling elements |
| Decoupling Elements | Max. 72 Vdc or 50 Vac RMS - With gas arrestor as coupling elements, Max. 144 Vdc or 100 Vac RMS - With ABDs as coupling elements |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
