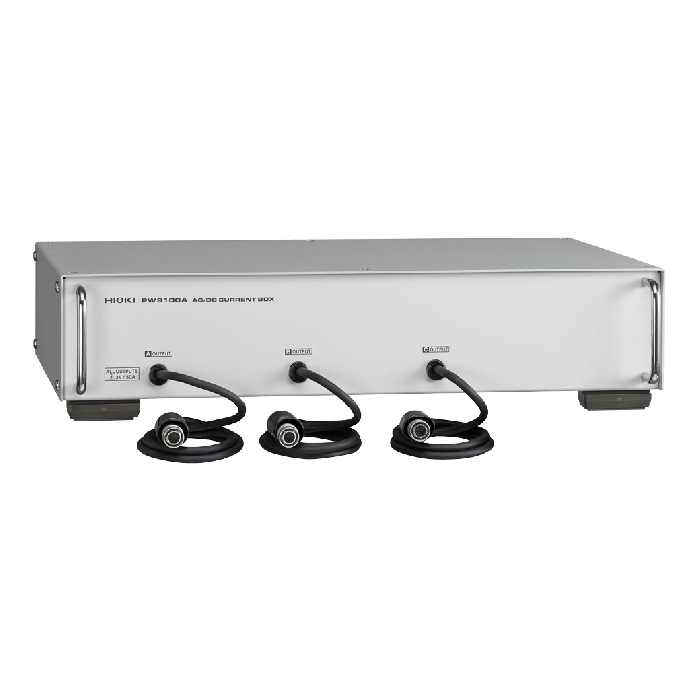

Hioki PW9100A AC/DC Current Box | APC Technology Group

PW9100A

PW9100A

Hioki

AC/DC Current Box

Direct Current Measurement Element that Delivers a Wide Bandwidth and Superior Accuracy

Hioki benchtop power meters and power analysers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The PW9100A is a direct AC/DC current measurement option for the Hioki Power Analyzers that delivers wide bandwidth and high accuracy testing across 3 or 4 channels of input. The option is ideal for applications requiring direct input connections when testing the power conversion efficiency of motors, primary and secondary side of inverters, hybrid and electric vehicles, and renewable energy equipment.

Key Features

  • World-leading measurement bands and accuracy
  • Wide-band DC to 3.5MHz, 50A AC/DC rated input
  • ±0.055% power accuracy in combination with PW8001(with U7005)
  • 120 dB CMRR (100 kHz)
  • Full-rack size suitable for test/evaluation benches
  • Current measurement option for Hioki Power Analysers
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply Power supply from Power Analyzers
Included Accessories Instruction Manual ×1
Max Allowable Input 60 A, within derating. However, up to ±200 A peak is allowable if within 20 ms (design value)
Dimensions and Weight 430 mm (16.93 in) W × 88 mm (3.46 in) H × 260 mm (10.24 in) D, Cable length: 0.8 m (2.62 ft) PW9100A-3: 3.7 kg (130.5 oz), PW9100A-4: 4.3 kg (151.7 oz)
Basic Accuracy DC (±0.02 % rdg. ±0.007 % f.s.) 45 Hz < f ≤ 65 Hz (±0.02 % rdg. ±0.005 % f.s., Phase: ±0.1 deg.) Accuracy is defined to 1 MHz
Measurement Terminals Terminal block (with safety cover), M6 screws
Number of Input Channels PW9100A-3: 3 channels PW9100A-4: 4 channels
Rated Current 50 A AC/DC
Output Voltage Rate 2 V/50 A
Operating Temperature and Humidity Temperature: 0°C to 40°C (32°F to 104°F), Humidity: 80% RH or less (no condensation)
Max. Rated Power Between measurement terminals and case (secondary side), 40 pF or less, defined at 100 kHz
Measurement Line Type Isolated input, DCCT input
More Information
Attribute Value
Data Sheet Click here to view
