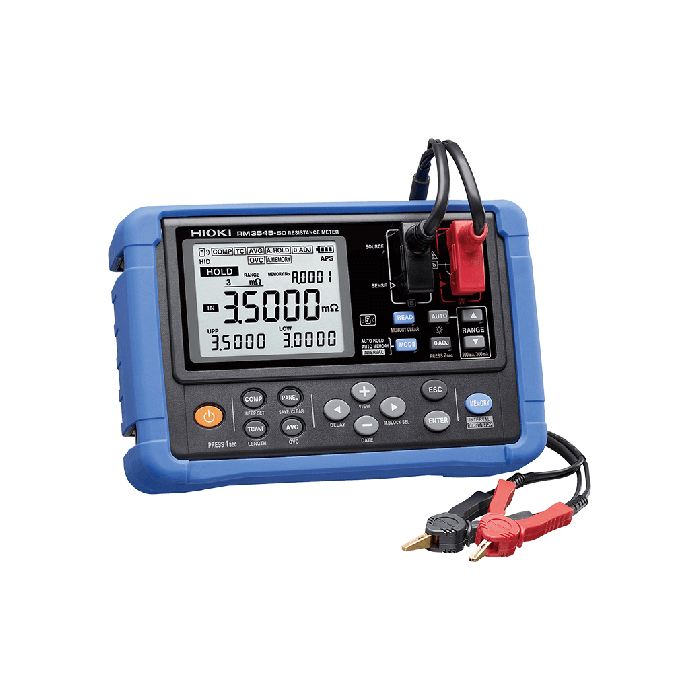

RM3548-50
RM3548-50
Hioki
Resistance Meter
High-precision Portable Resistance Meter Measures from µΩ to MΩ
The RM3548-50 is a precision handheld resistance meter measuring from 0.1 µΩ to 3.5 MΩ. It offers effortless operation and accuracy, making it ideal for EV maintenance, aircraft overhaul, and motor inspections.
Key Features
- 0.02% basic accuracy, 0.1 µΩ max. resolution, 1 A max. testing current
- Measure from 0.1 µΩ (testing current 1 A) to 3.5 MΩ
- Automatic temperature correction ensures accurate results & faster testing
- Advanced Connectivity: seamlessly integrate data with Excel® and a mobile app to manage & analyze data efficiently (*1)
- Protections for safe operation: halts operation & triggers alerts when incorrect voltage inputs are detected
- Versatile Applications: Ideal for EV, aircraft, & motor/transformer maintenance with various probe options
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply |
LR6 alkaline batteries × 8 |
| Included Accessories | Clip Type Lead L2107 ×1, Temperature Sensor Z2002 ×1, Protector Z5041 ×1, LR6 alkaline battery ×8, Instruction Manual ×1, USB Cable (A to mini-B) ×1, Strap ×1, Spare fuse ×1 |
| Display |
Refresh Rate: |
| Functionailty | Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/REF%), length conversion, judgment sound setting, auto hold, auto power save (APS), Averaging, panel store/panel load, USB communication interface (RM3548-50 internal memory is recognized as a mass storage device when connected to a PC), wireless communication via Bluetooth® (Z3210 is necessary) |
| Resistance Measurement Ranges |
3 mΩ (3.5000 mΩ display Max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 10 steps |
| Temperature Measurement Accuracy | -10.0°C to 99.9°C, accuracy: ±0.5°C (Temperature Sensor Z2002 and RM3548-50 combined accuracy) |
| Measurement Time | Fixed |
| Comparator Functions |
Number of recordable data points: up to 1000 for manual/auto, up to 6000 for interval Interval: 0.2 s to 10.0 s (0.2 s step) |
| Testing Current | [at 3 mΩ range] 1 A DC to [at 3 MΩ range] 500 nA DC |
| Open-Terminal Voltage | 5.5 V DC max. |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
