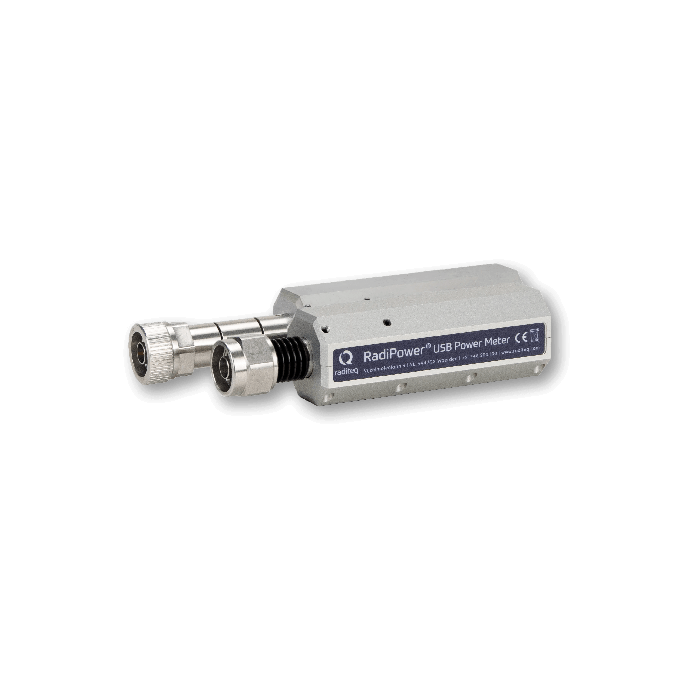

RadiPower Pulse RF/Burst Power Meter - 9 kHz to 6 GHz
RadiPower® Pulse Series – The Accurate EMC Pulse Power Meter
The RadiPower RPR2006P is a dedicated RF burst/pulse power meter covering a frequency range of 9 kHz to 6 GHz. With a maximum sampling speed of 1 million samples per second, it can capture RF burst/pulse signals with pulse durations down to 2 µs, while also measuring CW and RMS power.
The RPR2006P offers a high dynamic range of over 65 dB with ±0.25 dB basic accuracy, meeting the requirements of international EMC immunity standards. Its envelope trace mode stores 4,000 samples (2,000 pre-trigger and 2,000 post-trigger) to visualise RF burst signals, supporting both edge and level triggering. This capability is particularly suited for Ford FMC1278 RI-114 radar pulse power measurements. The meter connects directly to a PC via USB or integrates into the RadiCentre® platform via the USB1004A plug-in card. RadiMation® FREE freeware is included for full control and graphical display of results.
Key Features:
- RF Burst/Pulse Measurements with Pulse Durations Down to 2 µs
- 1 MSps Maximum Sampling Speed
- ±0.25 dB Accuracy with 65 dB Dynamic Range
- Envelope Trace Mode with 4,000-Sample Buffer
- Suitable for Ford FMC1278 RI-114 Radar Pulse Testing
- RadiCentre® and RadiMation® Compatible
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Response | +/- 0.25 dB |
| Maximum Frequency | 6 GHz |
| Minimum Frequency | 9_khz |
| Damage Level | > +20 dBm |
| Effective Measuring Power Range | -55 dBm to +10 dBm |
| Linearity | 0.05 dB + 0.005 dB/dB |
| Measurement Function | CW Power, Peak Power, Envelope Tracing |
| Frequency Range | 9 kHz to 6 GHz |
| Resolution | 0.01 dB |
