ETS-Lindgren

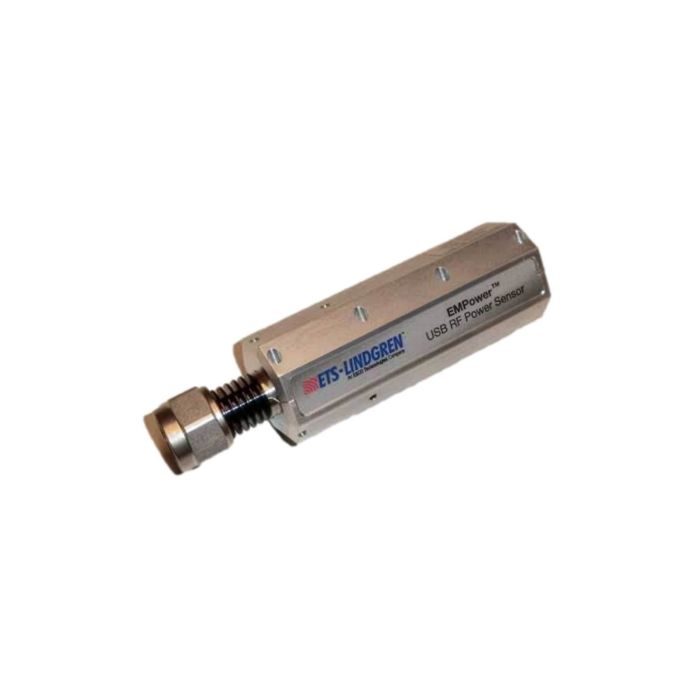

EMPower Power Meter - 10 MHz to 6 GHz
EMPower™ Wideband RF Measurement for ETSI Compliance
The EMPower 7002-006 and 7002-008 RF power meters are engineered to meet the strict measurement requirements of ETSI EN 300 328, EN 301 893, and EN 303 687 for wideband data transmission devices, including IEEE 802.11, Bluetooth, and Zigbee, across a frequency range of 10 MHz to 6 GHz/8 GHz. Its enhanced EMPower Pulse heads support sampling speeds up to 5 MS/s for accurate characterization of wideband signals, while hardware trigger I/O enables synchronized measurements for MIMO configurations.
The built-in USB interface allows direct PC connectivity, and the meter’s ETSI-compliant burst mode can capture up to 100,000 bursts with observation windows up to 60 seconds. Using 1 or 5 MS/s sampling combined with an RMS detector, the 7002-006 and 7002-008 both ensure precise measurements on wideband-modulated transceivers, and multiple units can be daisy-chained via MMCX connectors for fully synchronized multi-channel testing.
Key Features:
- Fully Compliant with ETSI 300 328, 301 893, and EN 303 687
- Fast, Accurate Performance
- Easy Operation
- Burst Mode
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Response | ±0.2 dB |
| Maximum Frequency | 6 GHz |
| Minimum Frequency | 10 MHz |
| Damage Level | > +20 dBm |
| Effective Measuring Power Range | -50 dBm to +10 dBm |
| Linearity | 0.05 dB + 0.005 dB/dB |
| Measurement Function | RMS CW Power, Peak (Max Hold) and Burst Mode |
| Frequency Range | 10 MHz to 6 GHz |
| Max SWR | 1.05 @ Below 1 GHz 1.15 @ 1 GHz to 6 GHz |
| Resolution | 0.01 dB |
