RPR3008W
RPR3008W
Raditeq

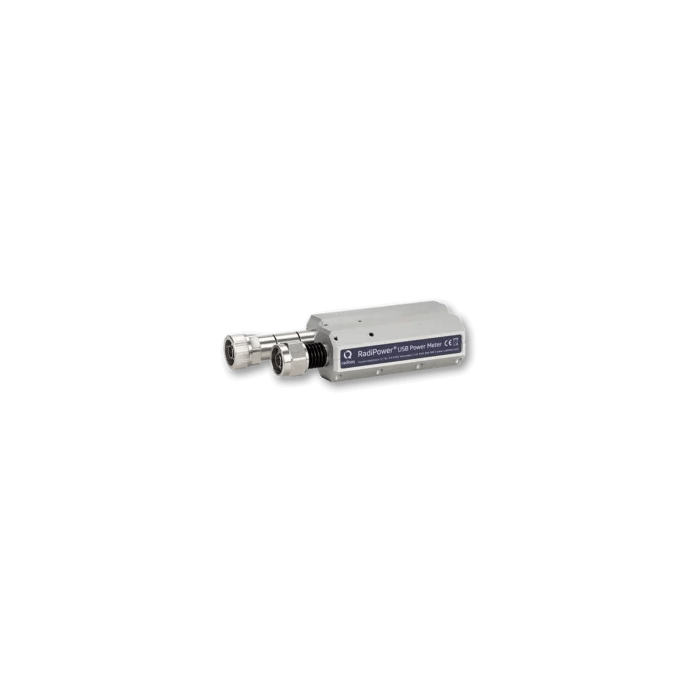

RadiPower Wireless RF Power Meter - 10 MHz to 8 GHz
RadiPower® 3000 Series – Fast Synchronous Power Measurements
The RadiPower RPR3008W is designed to meet the measurement requirements of ETSI EN 300 328 and EN 301 893 standards for wideband data transmission systems, including IEEE 802.11, Bluetooth, and Zigbee. Covering a frequency range of 10 MHz to 8 GHz, the RPR3008W supports the Wi-Fi 6E (IEEE 802.11ax) standard operating in the 6 GHz band.
With sampling speeds up to 33 MS/s and a hardware trigger input/output, the RPR3008W enables synchronous power measurements of MIMO devices. Its ETSI-compliant burst mode can store up to 100,000 bursts with observation windows up to 60 seconds, using 1 or 5 MS/s sampling combined with an RMS detector for accurate measurement of wideband-modulated transceivers. Multiple units can be daisy-chained via MMCX connectors for fully synchronised multi-channel testing. The meter connects directly to a PC via USB and is supplied with RadiMation® FREE freeware for immediate operation.
Key Features:
- Fully Compliant with ETSI 300 328 and 301 893 Standards
- Supports Wi-Fi 6E (IEEE 802.11ax) up to 8 GHz
- Sampling Speed up to 33 MS/s
- Hardware Trigger I/O for Synchronised MIMO Measurements
- Burst Mode with 100,000 Burst Storage Capacity
- RadiMation® FREE Freeware Included
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Response | +/- 0.2 dB |
| Maximum Frequency | 8 GHz |
| Minimum Frequency | 10 MHz |
| Damage Level | > +20 dBm |
| Effective Measuring Power Range | -50 dBm to +10 dBm @ 10 MHz to 6 GHz -40 dBm to +10 dBm @ 6 GHz to 8 GHz |
| Linearity | 0.05 dB + 0.005 dB/dB |
| Measurement Function | RMS Power, Peak Max Hold and Burst Mode |
| Frequency Range | 10 MHz to 8 GHz |
| Resolution | 0.01 dB |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
