ETS-Lindgren
EMPower Pulse RF/Burst Power - 9 kHz to 6 GHz

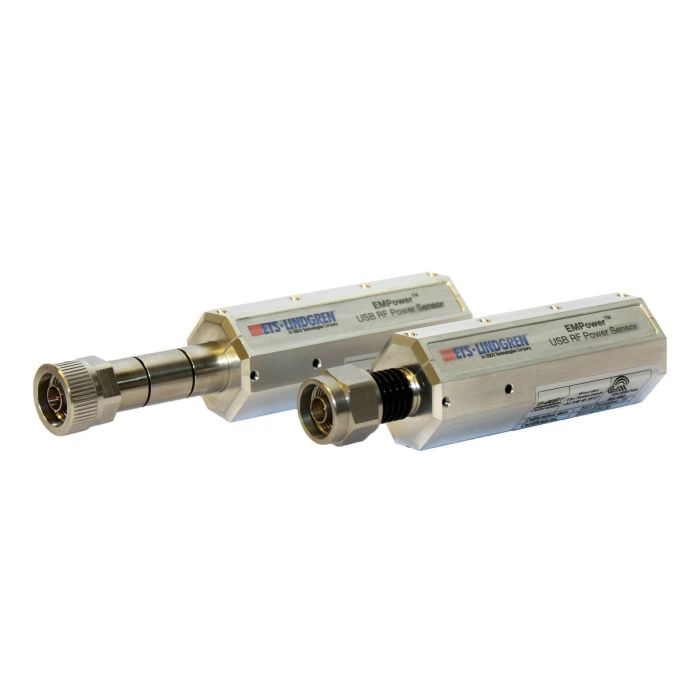

EMPower Pulse RF/Burst Power Sensor
The EMPower Pulse Power Meter is designed for precise analysis of high-frequency, pulse-shaped RF signals. It can measure bursts as short as 2 µs with a maximum sampling rate of 1 million samples per second, while maintaining high accuracy (±0.25 dB) and wide dynamic range (65 dB for 6 GHz, 55 dB for 18 GHz).
The modular EMPower plug-in card integrates into the EMCenter platform with four USB ports, supporting multiple sensors simultaneously, or can connect directly to a PC for standalone use. Features include a 4,000-sample buffer for pulse-shape visualization and support for test standards such as Ford Radar Pulse (EMC-CS-2009). Compatible with leading test automation software, EMPower simplifies workflow integration, enabling fast, reliable RF measurements in demanding test environments.
Key Features:
- Fast Performanc: Up to 1 Million Samples per Second
- Accurate Measurements with Dynamic Range of:
- -65 dB for 6 GHz Model (Model 7002-003)
- -55 dB for 18 GHz Model (Model 7002-005)
- Pulse-shaped Recording Mode Suitable for Ford Radar Pulse Test
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Maximum Frequency | 6 GHz |
| Minimum Frequency | 9_khz |
| Damage Level | >20 dBm |
| Effective Measuring Power Range | -55 dBm to +10 dBm |
| Linearity | 0.05 db/10 dB |
| Measurement Function | Peak Power |
| Frequency Range | 9 kHz to 6 GHz |
| Resolution | 0.01 dB |
