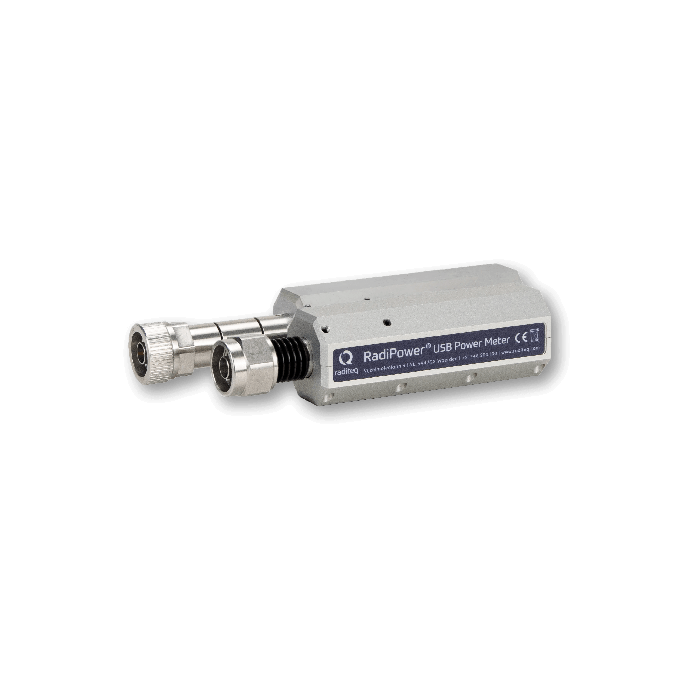

RadiPower CW RF Power Meter - 80 MHz to 18 GHz
RadiPower® 2000 Series – High-Frequency CW Power Meter
The RadiPower RPR2018C is a fast and accurate CW power meter covering a frequency range of 80 MHz to 18 GHz, ideal for radiated immunity testing and other high-frequency EMC applications. With a 1 MSps sampling speed, it delivers fast measurements across the full power range without the slowdown at low levels typical of conventional meters.
The RPR2018C provides ±0.25 dB frequency response accuracy up to 10 GHz and ±0.50 dB above 10 GHz, with a dynamic range of 55 dB (-45 dBm to +10 dBm). Its low VSWR reduces impedance mismatch contributions to measurement uncertainty. Housed in a ruggedised metal enclosure with an N-type precision input connector, the meter connects via USB to a PC or integrates into the RadiCentre® modular platform. RadiMation® FREE freeware is included, and the meter is compatible with RadiMation® EMC measurement software and other automation packages.
Key Features:
- Wideband Coverage from 80 MHz to 18 GHz
- Fast CW Power Measurements at up to 1 MSps
- ±0.25 dB Accuracy up to 10 GHz
- 55 dB Dynamic Range
- Low VSWR for Minimal Mismatch Uncertainty
- RadiCentre® and RadiMation® Compatible
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Response | +/- 0.25 dB (≤ 10 GHz) +/- 0.50 dB (> 10 GHz) |
| Maximum Frequency | 18 GHz |
| Minimum Frequency | 80 MHz |
| Damage Level | > +20 dBm |
| Effective Measuring Power Range | -45 dBm to +10 dBm |
| Linearity | 0.025 dB/dB |
| Measurement Function | CW Power |
| Frequency Range | 80 MHz to 18 GHz |
| Resolution | 0.01 dB |
