RPR2006C
RPR2006C
Raditeq

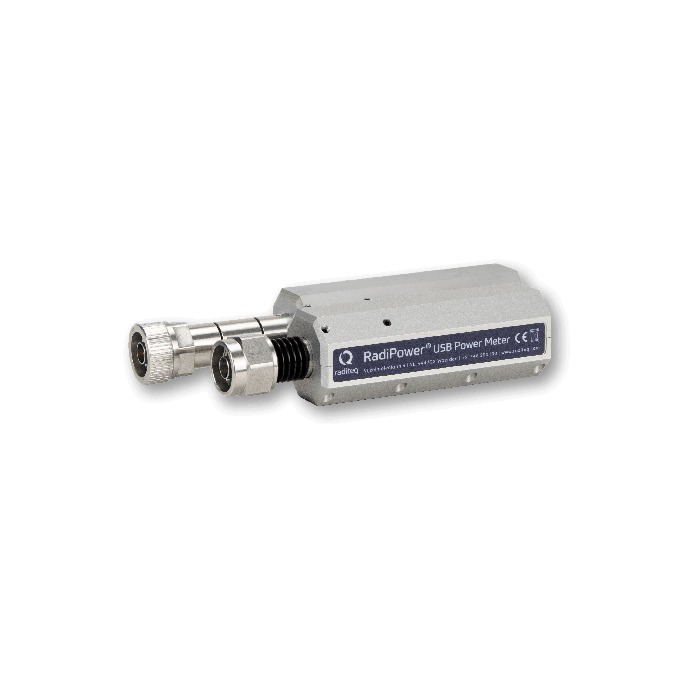

RadiPower CW RF Power Meter - 9 kHz to 6 GHz
RadiPower® 2000 Series – The Accurate EMC Power Meter
The RadiPower RPR2006C is an affordable, accurate, and extremely fast CW power meter covering a frequency range of 9 kHz to 6 GHz. With a 1 MSps sampling speed, it delivers fast power measurements across its complete power range, even at low power levels where conventional meters tend to slow down — making it ideal for time-critical EMC immunity testing.
Offering ±0.25 dB frequency response accuracy and a dynamic range of 65 dB (-55 dBm to +10 dBm), the RPR2006C is well suited for immunity testing in accordance with automotive, CE-marking, and military standards. Its very low VSWR minimises impedance mismatch uncertainty. The meter connects directly to a PC via USB or to the RadiCentre® modular platform via the USB1004A plug-in card, and is supplied with RadiMation® FREE freeware. An optional 4 kHz low-frequency extension (option #010) enables use from 4 kHz for MIL-STD-461 CS114 BCI testing.
Key Features:
- Fast CW Power Measurements at up to 1 MSps
- ±0.25 dB Accuracy Across 9 kHz to 6 GHz
- 65 dB Dynamic Range
- Low VSWR for Minimal Mismatch Uncertainty
- Ruggedised Metal Housing with N-Type Precision Connector
- RadiCentre® and RadiMation® Compatible
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Response | +/- 0.25 dB |
| Maximum Frequency | 6 GHz |
| Minimum Frequency | 9_khz |
| Damage Level | > +20 dBm |
| Effective Measuring Power Range | -55 dBm to +10 dBm |
| Linearity | 0.05 dB + 0.005 dB/dB |
| Measurement Function | CW Power |
| Frequency Range | 9 kHz to 6 GHz |
| Resolution | 0.01 dB |
