ETS-Lindgren

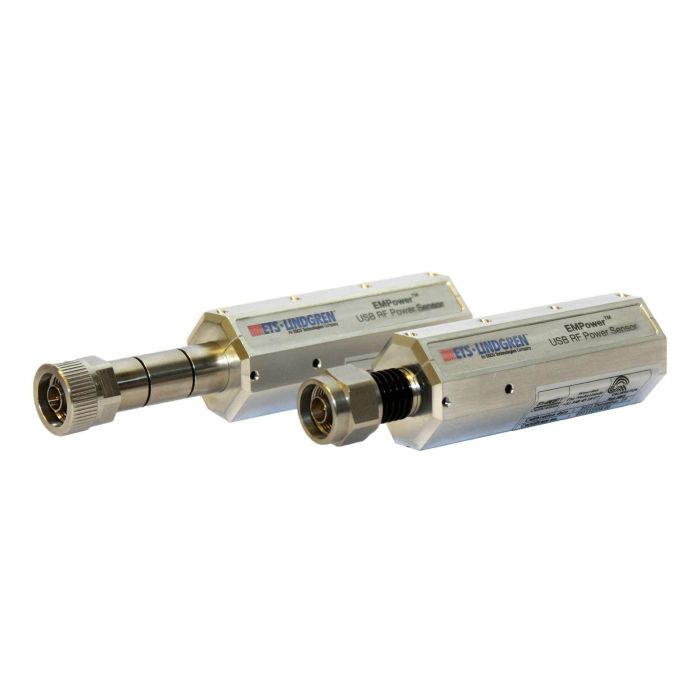

EMPower Power Meter - 80 MHz to 18 GHz
EMPower™ Next Generation RF Power Measurement
EMPower Power Meters deliver fast, highly accurate RF power measurements, even at very low signal levels, with seamless integration into the EMCenter platform or direct USB connection for standalone use. Engineered for high-speed performance, they sample at 10 million samples per second, ensuring precise capture of CW and pulsed signals for applications such as automotive immunity testing, military radar evaluation, and advanced telecom systems.
Their exceptional ±0.25 dB accuracy, wide dynamic range, and optimized low-VSWR design minimize mismatch uncertainty and signal distortion, providing reliable, repeatable data across demanding RF environments. Each modular plug-in card offers four USB ports for flexible sensor combinations, while included software and compatibility with TILE!™, EMQuest™, and other automation platforms make integration simple and efficient.
Key Features:
- Fast Performance: Up to 1 Million Samples per Second Measured Continuous Wave
- Accurate Measurements with Dynamic Range of:
- 65 dB for 6 GHz Model (Model 7002-002)
- 55 dB for 18 GHz Model (Model 7002-004)
- Low Measurement Uncertainty
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Maximum Frequency | 18 GHz |
| Minimum Frequency | 80 MHz |
| Damage Level | >20 dBm |
| Effective Measuring Power Range | -45 dBm to +10 dBm |
| Linearity | 0.05 db/10 dB |
| Measurement Function | RMS CW Power |
| Frequency Range | 80 MHz to 18 GHz |
| Resolution | 0.01 dB |
