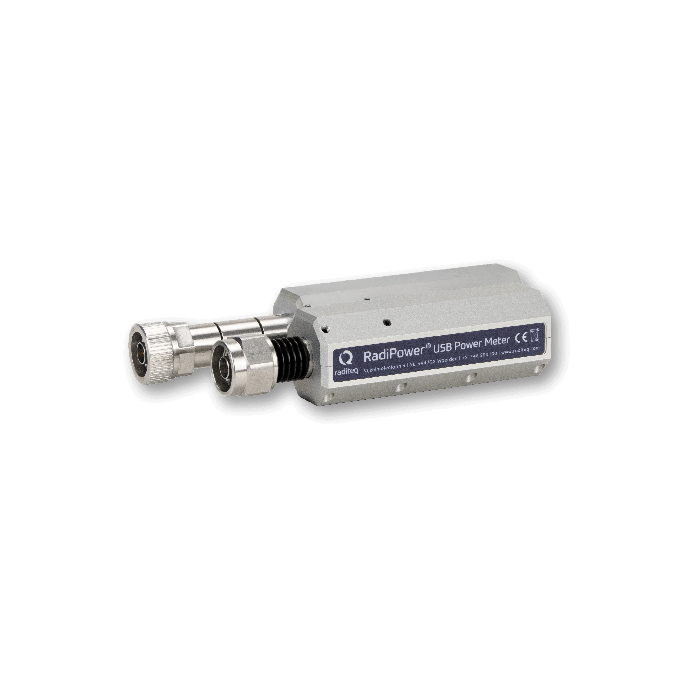

RadiPower Pulse RF/Burst Power Meter - 80 MHz to 18 GHz
RadiPower® Pulse Series – High-Frequency Pulse Power Meter
The RadiPower RPR2018P is a dedicated RF burst/pulse power meter covering a frequency range of 80 MHz to 18 GHz. With a maximum sampling speed of 1 MSps, it captures burst/pulse signals with pulse durations down to 2 µs while also supporting CW and RMS power measurement modes.
Offering ±0.25 dB accuracy up to 10 GHz (±0.50 dB above 10 GHz) and a 55 dB dynamic range (-45 dBm to +10 dBm), the RPR2018P meets the requirements of international EMC immunity standards for high-frequency applications. Its envelope trace mode stores 4,000 samples with edge/level triggering for detailed pulse characterisation. The meter connects via USB to a PC or integrates into the RadiCentre® modular platform through the USB1004A plug-in card, and ships with RadiMation® FREE freeware for immediate operation and graphical display of measurement results.
Key Features:
- Wideband Pulse/Burst Measurements from 80 MHz to 18 GHz
- 1 MSps Maximum Sampling Speed for Pulse Durations Down to 2 µs
- ±0.25 dB Accuracy up to 10 GHz
- 55 dB Dynamic Range
- Envelope Trace Mode with 4,000-Sample Buffer
- RadiCentre® and RadiMation® Compatible
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Response | +/- 0.25 dB (≤ 10 GHz) +/- 0.50 dB (> 10 GHz) |
| Maximum Frequency | 18 GHz |
| Minimum Frequency | 80 MHz |
| Damage Level | > +20 dBm |
| Effective Measuring Power Range | -45 dBm to +10 dBm |
| Linearity | 0.025 dB/dB |
| Measurement Function | CW Power, Peak Power, Envelope Tracing |
| Frequency Range | 80 MHz to 18 GHz |
| Resolution | 0.01 dB |
