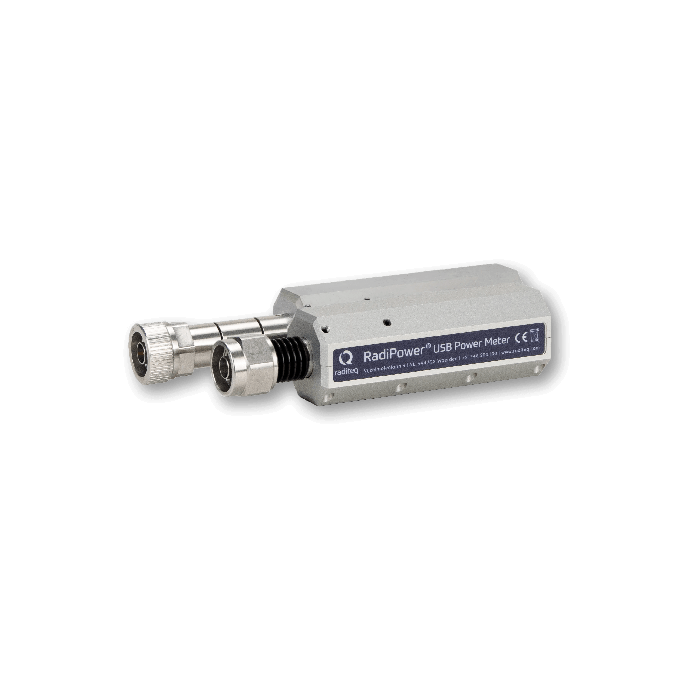

RadiPower Pulse RF/Burst Power Meter - 4 kHz to 6 GHz (Option #010)
RadiPower® Pulse Series – Extended Low-Frequency Pulse Power Meter
The RadiPower RPR2006P#010 is the RPR2006P pulse power meter equipped with the low-frequency extension option #010, extending the frequency range down to 4 kHz. This makes it suitable for MIL-STD-461 CS114 BCI common mode testing on power cables, in addition to all standard EMC pulse/burst measurement applications up to 6 GHz.
Retaining all the capabilities of the standard RPR2006P, this model samples at up to 1 MSps for burst/pulse signals with durations down to 2 µs, and provides CW, peak, and envelope tracing measurement modes. The 4,000-sample envelope trace buffer with edge/level triggering supports advanced pulse characterisation including Ford FMC1278 RI-114 radar pulse testing. With ±0.25 dB accuracy and over 65 dB dynamic range, the RPR2006P#010 connects via USB to a PC or to the RadiCentre® modular system, and is supplied with RadiMation® FREE freeware.
Key Features:
- Extended Frequency Range from 4 kHz to 6 GHz
- Suitable for MIL-STD-461 CS114 BCI Testing
- RF Burst/Pulse Measurements Down to 2 µs Pulse Duration
- ±0.25 dB Accuracy with 65 dB Dynamic Range
- Envelope Trace Mode with 4,000-Sample Buffer
- RadiCentre® and RadiMation® Compatible
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Response | +/- 0.25 dB |
| Maximum Frequency | 6 GHz |
| Minimum Frequency | 4 kHz |
| Damage Level | > +20 dBm |
| Effective Measuring Power Range | -55 dBm to +10 dBm |
| Linearity | 0.05 dB + 0.005 dB/dB |
| Measurement Function | CW Power, Peak Power, Envelope Tracing |
| Frequency Range | 4 kHz to 6 GHz |
| Resolution | 0.01 dB |
