S4-1613
S4-1613
LOCOSYS Technology
GPS module featuring high sensitivity, low power and ultra small form factor, powered by SiRF Star IV.

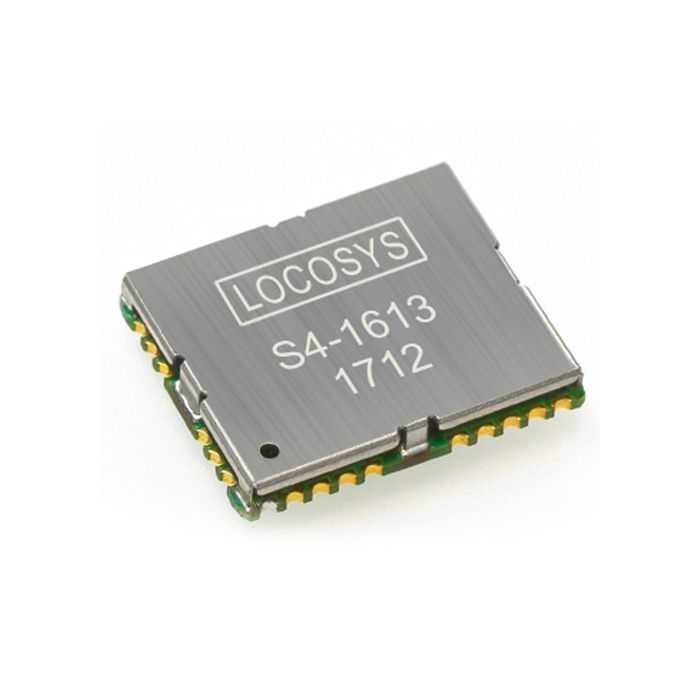

LOCOSYS S4-1613 GPS module features high sensitivity, low power and ultra small form factor. This GPS module is powered by SiRF Star IV, it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. Optional Built-in EEPROM realizes SiRF CGEE (Client Generated Extended Ephemeris) function that predicts satellite positions for up to 3 days and delivers CGEE-start time of less than 15 seconds under most conditions, without any network assistance. Besides, MicroPowerMode allows GPS module to stay in a hot-start condition nearly continuously while consuming very little power.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Maximum Input Voltage | 1.71V - 1.89V |
| Module Type | GPS Module |
| Satellite Systems | GPS, QZSS |
| Power (mA) | 33mA |
| VB (uA) | 660uA |
| Operating Temperature | -40 ~ 85°C |
| Interface | UART |
| Dimensions | 15.9 x 13.1 x 2.2 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
