3D4D8G32LB1742

3D4D8G32LB1742

3D Plus

1.2V, 8Gbit DDR4 SDRAM organised as 256Mb x32

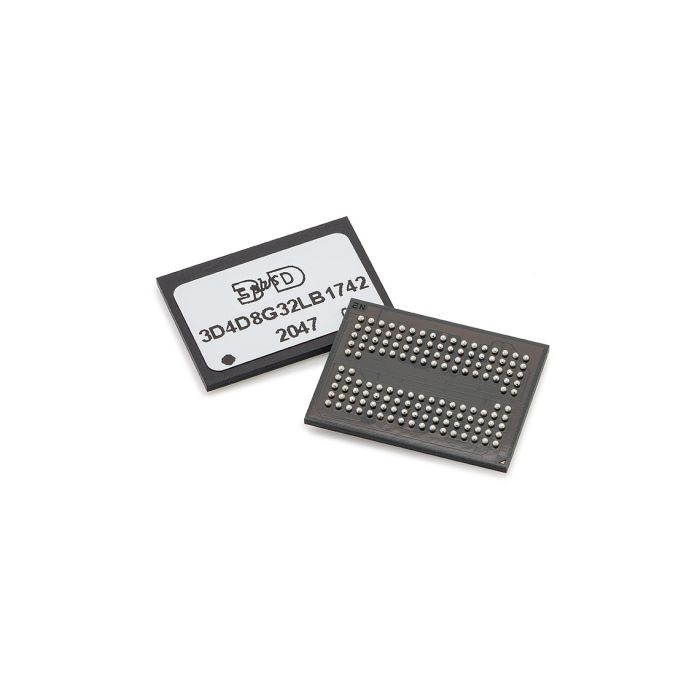

main product photo

3D PLUS offers a new 8Gbit DDR4 SDRAM compatible with the industry standard footprint that are available at 2400 Mbps in Commercial, Industrial and Military temperature range.

Thanks to the high density patented technology the memories are embedded in a small form factor device without compromising electrical or thermal performance. This device is ideal for high density memory applications that require high speed transfer and compatibility with standard servers and networking equipment.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Type DDR4 SDRAM
Data_Sheet

To request a datasheet, contact a member of our high-reliability team hi-rel@apctech.com
Configuration 256M x32
Package FBGA 144
Temperature Range
  • -40°C to +85°C
  • -40°C to +95°C
  • -55°C to +125°C
Power Supply +1.2V ± 0.06V
Features
  • Industry standard ball-out
  • 144-ball FBGA – Lead-free RoHS
  • 32M words x 32 bits x 8 banks
  • VDD/VDDQ = 1.2V±0.06V
  • VPP = 2.375V to 2.75V
  • Interface: Pseudo Open Drain (POD)
  • 8n-bit prefetch architecture
  • 8 internal banks per memory (4 banks x 2 bank groups)
  • On-die termination (ODT) : nominal values of RsQ/7, RsQ/5 (RsQ=240Ω)
  • Programmable CAS latency
  • ON-Die terminaison ( ODT)
  • Fixed burst lengths of 8 and burst chop (BC) of 4
  • Selectable BC4 or BL8 on-the-fly
  • Auto refresh and Self refresh mode
  • RESET Pin for Power-up sequence and reset function
  • DataRate available : 2400 Mbps
  • Industrial and Military temperature range
