3DLV3408VS1715
3DLV3408VS1715
3D Plus

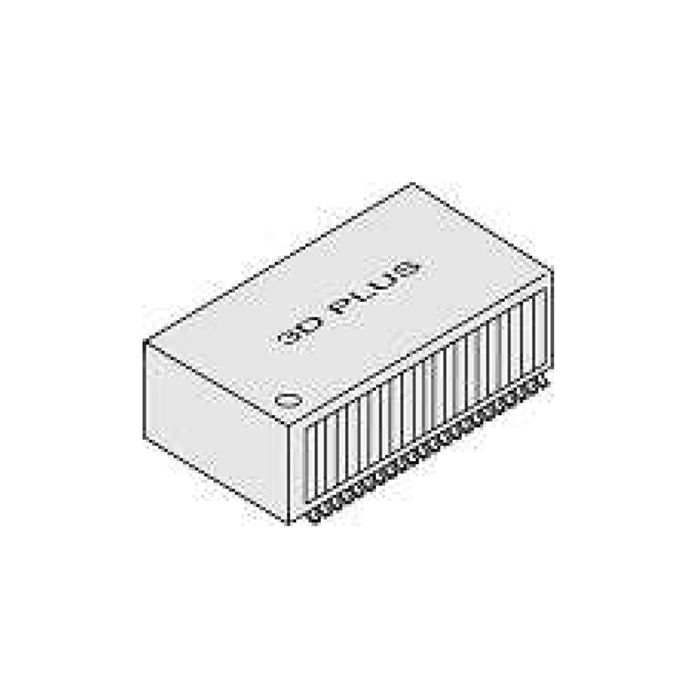

3.3V Octal LVDS Repeater Module, 8 Lines-SOP
The 3DLV3408VS1715 is an octal differential repeater, designed for applications requring ultra low power dissipation and high data rates. The device is designed to support data rates up to 200 Mbps (100 MHz) using Low Voltage Differential Signalling (LVDS) technology.
The differential input signals are repeated in order to preserve signal integrity through long transmission distances. LVDS inputs and outputs are LVDS levels as defined by TIA/EIA-644 LVDS standard. The 3DLV3408VS1715 provides a new alternative for high speed data transmission for point-to-point interface applications.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Type | LVDS |
| Data_Sheet |
To request a datasheet, contact a member of our high-reliability team [email protected] |
| Pin Assignment | N/A |
| Temperature Range |
|
| Power Supply | 3.3 V power supply |
| Features |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
