Hioki SME-8302 Electrode For Surface Resistance | APC Technology Group

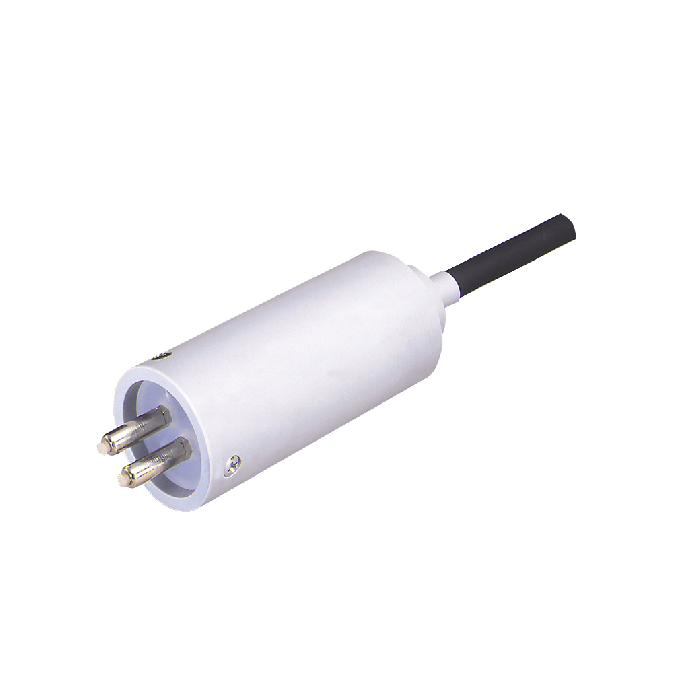

SME-8302

SME-8302

Hioki

Electrode For Surface Resistance

Measure Surface Resistivity and Volume of Challenging Objects Easily

Hioki Super Megohmmeters are high insulation resistance meters designed to measure the electrical resistance of insulation materials with high insulating properties. The SME-8302 is an electrode for measuring the surface resistance of curved insulating materials in conjunction with the SM7000 series. Measurement is made by lightly applying the electrode tips to the surface of the material being measured.

Electrode for surface resistance of curved samples such as resin and rubber processed goods, TV cathode tubes or small samples. Surface resistance can be measured by pressing the rubber tips at the tip onto the sample. Measure electrodes up to 10^11 Ω at 10mm intervals or greater.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Dimensions and Weight

φ 40 mm (1.57 in) × 115 mm (4.53 in)
Lead length: 1 m (3.28 ft)
An electrode distance: 4 mm (0.16 in)

More Information
Attribute Value
Data Sheet Click here to view
