SME-8360
SME-8360
Hioki

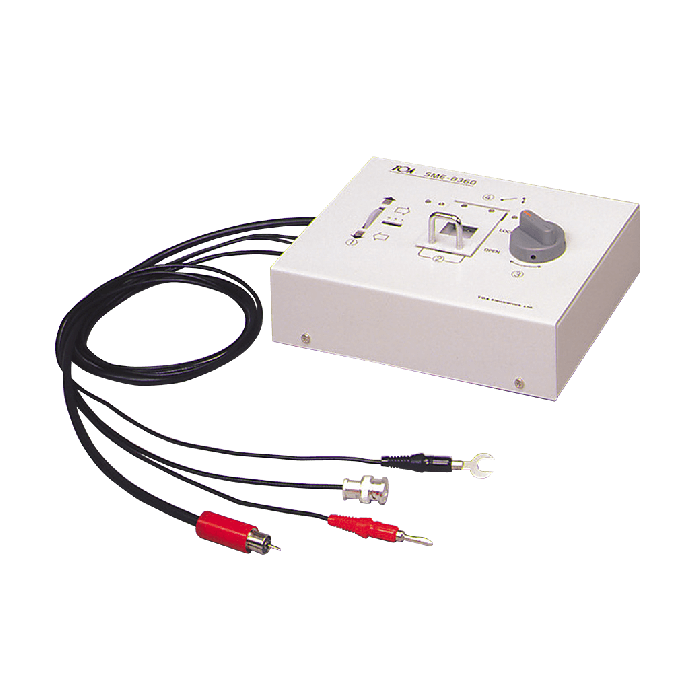

Electrode For Chip Capcitor
Measure the Resistivity of the Tips of Capacitors Effectively
Hioki Super Megohmmeters are high-insulation resistance meters designed to measure the electrical resistance of insulation materials with high-insulating properties. The SME-8360 is an optional electrode device to use with Hioki super megohmmeters for easily measuring capacitor tip resistance.
The jig can be arbitrarily adjusted up to 11 mm (0.43 in.) in length (compatible with 0603(inch) [1608(metric)] size or larger) capable of measuring various tip capacitors. When connected to the megohmmeters by an interlock cable (*1), measurement voltage becomes “OFF” while the lid is open to ensure safety.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Dimensions and Weight |
200 mm (7.87 in) W × 520 mm (2.05 in)H × 150 mm (5.91 in)D |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
