Hioki SME-8311 Electrode For Flat Sample | APC Technology Group

SME-8311

SME-8311

Hioki

Electrode For Flat Sample

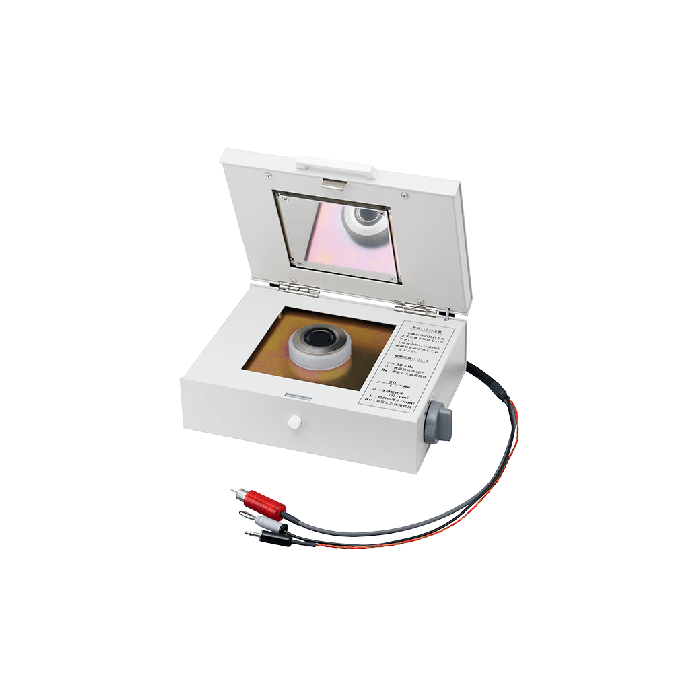

Measure the Resistivity of Flat Samples Efficiently

Hioki Super Megohmmeters are high-insulation resistance meters designed to measure the electrical resistance of insulation materials with high-insulating properties. The SME-8311 is used for measuring the insulation resistance of flat samples in conjunction with the SM7000 series.

Sample of 40 mm to 100 mm square by up to 8 mm in thickness is measurable. The main electrode dia. is 19.6 mm and inner & outer dia. of ring electrode are 24.1 mm and 28.8 mm respectively. Measurement voltage becomes off while the lid is open to ensure safety. The fundamental specifications are the same as SME-8310.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Dimensions and Weight

215 mm (8.46 in) W × 78 mm (3.07 in)H × 165 mm (6.50 in)D
Lead Length: 75 cm (2.46f t)

More Information
Attribute Value
Data Sheet Click here to view
