SOM-5883
SOM-5883
Advantech
Intel® 11th Gen Core Processors (Code Name: Tiger Lake-H) COM Express Basic Type6 Module
COM Express Compact
COM Express Basic is equipped with the latest processor. It can provide high-speed interfaces like HDMI/DisplayPort, PCI Express, SATA and USB 3.0 for volume data transportation, and LVDS, PCI and IDE for legacy applications. COM Express Basic Module is equipped with high-end processor in a board size of 125mm x 95mm.
COM Express Basic Type 6
COM Express Basic Type 6 provides triple DDI display interfaces, HDA, abundant super speed I/Os and high bandwidth expansion interfaces such as USB3.1, SATAIII and PEG/PCIe gen3. It comes with excellent computing and graphics performance.

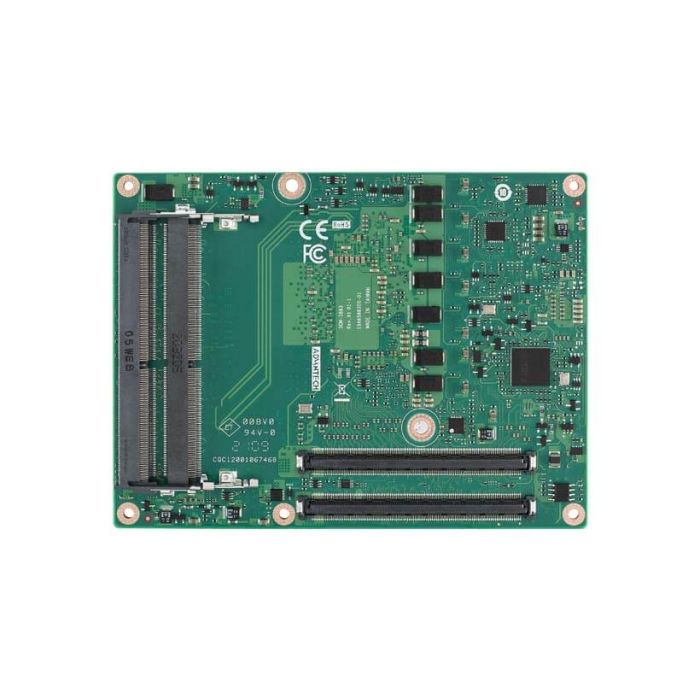

Advantech SOM-5883- Intel® 11th Gen Core Processors Tiger Lake-H
- Intel® 11th Gen Core Processors, up to 8Core/16T, L3 Cache 24M
- Intel Iris Xe(Gen 12) graphics, 4 independent 4K display
- Dual channel DDR4 Max 128GB SODIMM, support ECC
- Super speed I/O: PCIe4 x16 (16GT/s), USB3.2 gen3 (10Gb), 2.5GbE, SATA3 (6Gb)
- TPM2.0 security protection (Option), onboard NVMe SSD fast & anti-vibration (Option)
- Supports iManager, Edge-AI Suite, DeviceOn
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Pin Out Type | COM Express R3.0 Type 6 compatible |
| Socket Type | Maximum 4pcs 260P SO-DIMM (Dual Channel). 2pcs top side by default & 2pcs bottom side by option |
| Platform Controller Hub | Intel Iris Xe(Gen 12) graphics |
| Base Frequency | 2.6 GHz |
| Core/Thread | 8 |
| LLC | 24 MB |
| System Chipset | QM580E |
| BIOS | AMI UEFI 256Mbit |
| Speed | 3200 |
| EEC Support | Non-ECC or ECC support by specific SKU |
| Max Memory Capacity | Max. 128GB |
| Memory Socket | Maximum 4pcs 260P SO-DIMM (Dual Channel). 2pcs top side by default & 2pcs bottom side by option |
| VGA | 1920 x 1200@60Hz |
| LCD | LVDS dual channel: 1920 x 1200@60Hz (optional eDP 4096 x 2304@60Hz, 24bpp) |
| Multiple Display | Quad Simultaneous Independent Display |
| PCI Express x16 | 1 PCIe x16 configurable to 1 x16, 2 x8, 1 x8 + 2 x4 |
| PCI Express x1 | 8 PCIe x1, configurable to x4 or x2 |
| LPC | Yes |
| SMBus | Yes |
| I²C Bus | Yes |
| Gigabit Ethernet | Intel I225LM/IT (up to 2.5GbE) |
| SATA | 4 Ports (6 Gbps) |
| SATA3.0 | 4 Ports (6 Gbps) |
| SPI Bus | Yes. For BIOS EEPROM |
| GPIO | 8-bit |
| TPM | TPM2.0 (optional) |
| Smart Fan | 2 Ports: 1 port on COM module (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board |
| Power Type | ATX: Vin, VSB; AT: Vin |
| Power Consumption (Max) | 68.38W @ 12V (i7-11850HE with 128GB DDR4 3200) |
| Power Consumption (Idle) | 15.75W @ 12V (i7-11850HE with 128GB DDR4 3200) |
| Vibration Resistance | 3.5 Grms |
| Graphics Frequency | 1.35 GHz |
| Graphics Memory | Shared memory |
| DDI | 3 DDI ports support configurable HDMI/DVI/DisplayPort HDMI: 4096 x 2160@24Hz, DVI: 1920 x 1200@60Hz, DP: 4096 x 2304@60Hz |
| 2D/3D/HW Acceleration | JPEG, H264 (8 bits) and HEVC/H265 (10 bits) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
