SOM-6832
SOM-6832
Advantech
Intel® Pentium®/Celeron® and Atom® x6000 Series (Elkhart Lake) COM Express® Compact Type 6 Module
COM Express Compact
COM-Express Compact is a compact module that includes Intel Core i ULT 9th Generation and Intel Atom processor, the best solution for mobile applications.
COM Express Compact Type 6
COM Express Compact Module is equipped with a low-power processor in a board size of 95mm x 95mm. Type 6 provides DDI display interface, HDA, super speed I/Os and high bandwidth expansion interfaces such as USB3.0, SATAIII and PCIe gen3. It offers a balance performance with low power consumption.

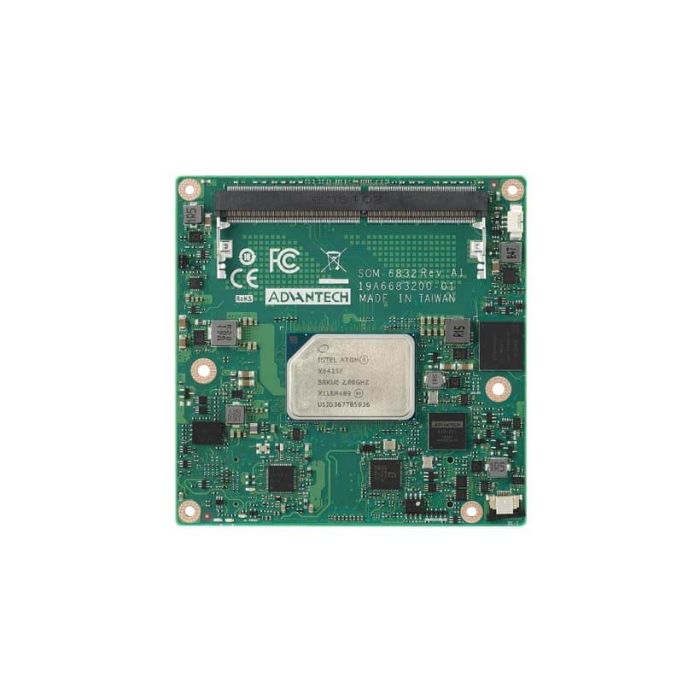

Advantech SOM-6832- Elkhart Lake COM Express® Compact Type 6 Module
- COM Express® R3.0 Compact Module Type 6 Pinout
- Intel® Pentium®/Celeron® and Atom® x6000 Series (Elkhart Lake) Processors
- Dual Channel up to 32GB DDR4-3200 and IBECC Supported by Specific SKUs
- Supports up to 3 simultaneous display: LVDS/eDP, HDMI/DisplayPort
- Supports onboard eMMC Storage and 2.5GbE
- Supports iManager, WISE-DeviceOn, and Embedded Software APIs
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Pin Out Type | COM Express R3.0 Type 6 compatible |
| Socket Type | 2 x 260P SODIMM (Dual Channel) |
| Base Frequency | 2.0 GHz |
| Max Single Core Turbo Frequency | 3.0 GHz |
| Core/Thread | 4 |
| LLC | 1.5 MB |
| IBECC | N/A |
| BIOS | AMI UEFI 256Mbit |
| Speed | 3200 MT/s |
| EEC Support | IBECC supported by Specific CPU SKUs |
| Max Memory Capacity | Up to 16GB |
| Memory Socket | 2 x 260P SODIMM (Dual Channel) |
| Multiple Display | Triple Simultaneous Independent Display |
| PCI Express x1 | 6 PCIe x1 |
| LPC | Yes |
| SMBus | Yes |
| I²C Bus | Yes |
| Gigabit Ethernet | 1 Port Maxlinear GPY215, Default 1G; 2.5G by BIOS item option |
| SATA3.0 | 2 Port (6 Gbps) |
| SPI Bus | Yes. For BIOS EEPROM |
| GPIO | 8-bit |
| TPM | TPM2.0 |
| Fan | 2 Ports: 1 port on COM module (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board |
| Power Type | ATX: Vin, VSB; AT: Vin |
| Vibration Resistance | 3.5 Grms |
| Graphics Frequency | 400 MHz |
| 2D/3D/HW Acceleration | OpenGL* 4.5, DirectX* 12, OpenCL*1.2, Vulkan 1.1 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
