COM-HPC® Server Carrier for Size D and Size E Modules

COM-HPC Standard

COM-HPC is a next-generation computer-on-module. It supports more powerful computing unit, memory capacity up to 1TB, and offers next-generation high-speed interfaces such as PCIe Gen4/5 (16/32Gbps), USB4.0 (40Gbps), and 25G Ethernet. Such features meet growing demands for data processing and transmission. Coming with Client pinout types by Size A/B/C and Server pinout types by Size D/E, COM-HPC is adaptable to the future use of 5G networks.

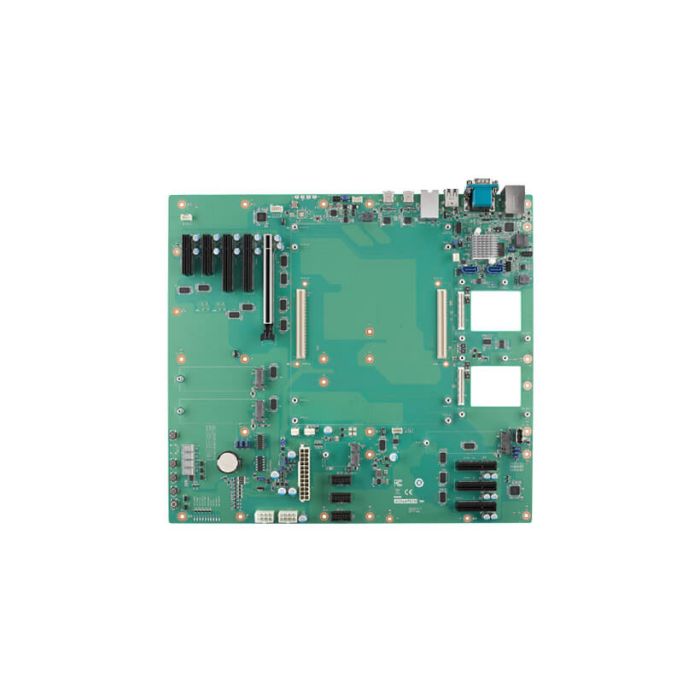

Advantech SOM-DH5000 - Server Carrier for Size D and Size E Modules

The Advantech COM-HPC SOM-DH5000 is an ultra-high-end server designed to withstand the harshest of environments, offering rich extension 1 PCIe x16, 2 PCIe x8, 5 PCIe x4. Get unprecedented performance with 512GB large memory size with 10/25 Gigabit Ethernet support by OCP mezzanine card.



Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features
  • PICMG COM-HPC Server pinout
  • COM-HPC Size D and E compatible
  • Rich extension: 1 PCIe x16, 2 PCIe x8, 5 PCIe x4
  • Integrated BMC supports VGA, Dedicated NIC for IPMI, iKVM
  • 10/25 Gigabit Ethernet support by OCP mezzanine card
  • Visible Debug Utility: BIOS 80 Port and Power State
Pin Out Type PICMG COM-HPC Server pinout
VGA 1920 x 1200 (from AST2500)
PCI Express x16 1
PCI Express x8 2
PCI Express x4 5
eSPI 1
M.2 B Key 1
M.2 E Key 1
M.2 M Key 2
SMBus 1
I²C Bus 2 (1x 1.8v, 1x 3.3v)
Gigabit Ethernet 1 port 1000Base-T (RJ-45) supports 10/100/1000 Mbps from AST2500, supports IPMI 1 port 1000Base-T (RJ-45) supports 10/100/1000 Mbps from Module side
Fast Ethernet Up to 8 Ports, support 10G/25G by OCP mezzanine card
SATA3.0 2 (Type B Connector)
USB 4.0 2
Boot SPI 1 (SPI Socket)
GPIO 1 (6x2P Pin Header)
TPM 2 (1x 4P Smart Fan Header from Module side, 1x 3P System Fan Header)
Fan 2 (1x 4P Smart Fan Header from Module side, 1x 3P System Fan Header)
Port 80 1
Power Type ATX: Vin, VSB; AT: Vin
Graphics Frequency 266MHz
Graphics Memory 1GB @ DDR4-1600
More Information
Attribute Value
Data Sheet Click here to view
