SOM-DH7000

SOM-DH7000

Advantech

COM-HPC® Server Carrier for Size E (Proprietary)

COM-HPC Standard

COM-HPC is a next-generation computer-on-module. It supports more powerful computing unit, memory capacity up to 1TB, and offers next-generation high-speed interfaces such as PCIe Gen4/5 (16/32Gbps), USB4.0 (40Gbps), and 25G Ethernet. Such features meet growing demands for data processing and transmission. Coming with Client pinout types by Size A/B/C and Server pinout types by Size D/E, COM-HPC is adaptable to the future use of 5G networks.

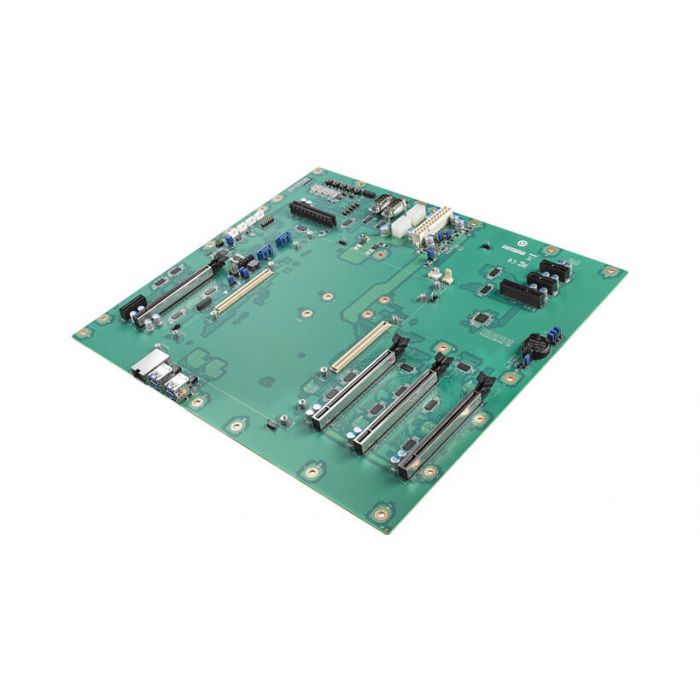

Advantech SOM-DH7000 - Server Carrier for Size D and Size E Modules

The Advantech COM-HPC SOM-DH5000 is an ultra-high-end server designed to withstand the harshest of environments, offering max. power 225W supplying for server-grade processor and rich extension: 4 x PCIe x16, 1 PCIe x8, 1 PCIe x4, 2 PCIex1 (Gen 5).

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features
  • PICMG COM-HPC® Server pinout
  • COM-HPC® Size E (Proprietary)
  • Rich extension: 4 x PCIe x16, 1 PCIe x8, 1 PCIe x4, 2 PCIex1 (Gen 5)
  • 1 PCIe x1 reserved for BMC add-in card
  • Max. power 225W supplying for server grade processor
  • Visible Debug Utility: BIOS 80 Port and Power State
PCI Express x16 4
PCI Express x8 1
PCI Express x4 1
PCI Express x1 2
PCI Express for BMC 1
eSPI 1
LPC 1
SMBus 1
I²C Bus 2 (1x 1.8v, 1x 3.3v)
Gigabit Ethernet 1 Port 2.5GBase-T (RJ-45) supports up to 2.5Gbps from Module side
SATA 2 Ports
Boot SPI 1 (SPI Socket)
GP SPI 1 (7x 2P Pin Header)
Fan 2 (1x 4P Smart Fan Header from Module side, 1x 3P System Fan Header)
Port 80 1
Power Type ATX: Vin, VSB; AT: Vin
More Information
Attribute Value
Data Sheet Click here to view
