SOM-6884
SOM-6884
Advantech
13th Gen. Intel® Core™ Processor Raptor Lake-P COM Express® Compact Type6
COM Express Compact
COM-Express Compact is a compact module that includes Intel Core i ULT 9th Generation and Intel Atom processor, the best solution for mobile applications.
COM Express Compact Type 6
COM Express Compact Module is equipped with a low-power processor in a board size of 95mm x 95mm. Type 6 provides DDI display interface, HDA, super speed I/Os and high bandwidth expansion interfaces such as USB3.0, SATAIII and PCIe gen3. It offers a balance performance with low power consumption.

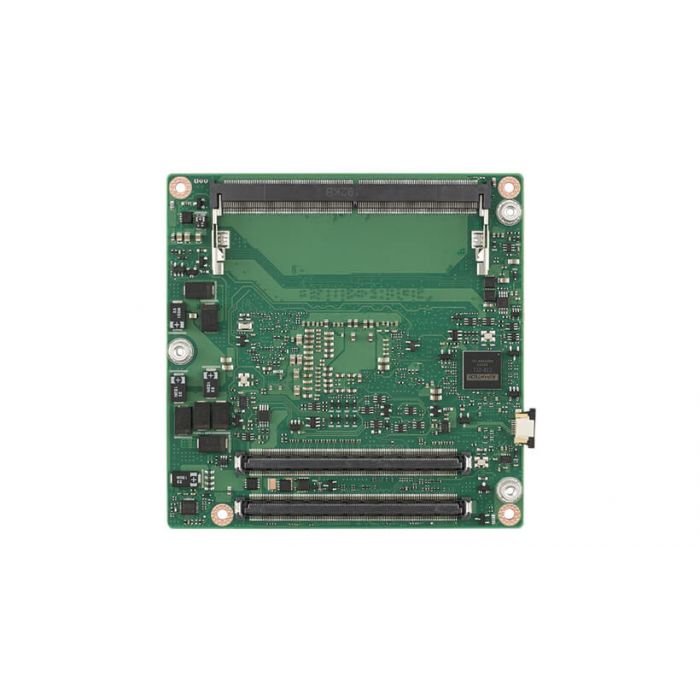

Advantech SOM-6884- Processor Raptor Lake-P COM Express® Compact Type 6
- 13th Generation Intel® Core™ Processor
- COM Express R3.1 Compact Module Type 6 Pinout
- Dual channel memory up to 64GB, 4800MT/s
- High speed I/O: 16x PCIe Gen4, 8x PCIe Gen3, 2x USB4 & 4x USB3.2 Gen2
- Supports SUSI, DeviceOn and Edge AI Suite
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Pin Out Type | COM Express R3.1 Type 6 compatible |
| Base Frequency | 1.8/4.0GHz |
| Core/Thread | 14C (6P+8E) |
| Cache | 24M |
| CPU TDP | 45W |
| Max Memory Capacity | Up to 64GB by 2 SO-DIMM |
| LCD | LVDS dual channel: 1920 x 1200@60Hz (option support eDP1.4b 4096 x 2304@60Hz, 24bpp) |
| Multiple Display | Four displays with each display combinations |
| PCI Express x16 | PEG: PCIe Gen4, 12 lanes (H series), Bitfurcate to 1 x8, 1 x4 or 3 x4 PEG: PCIe Gen4, 4 lanes (P/U series), Bitfurcate to 1 x4 or 2 x2 PCIe: PCIe Gen3, 8 lanes , Bitfurcate to 1 x8, 2 x4 (3 of 8 optional) or 1 x4, 1 x1 or 2 x2, 1 x1 |
| LPC | Yes |
| SMBus | Yes |
| I²C Bus | Yes |
| CAN Bus | Support one CAN Bus option from COM Port |
| Gigabit Ethernet | Intel® I226 controller; 10M/100M/1000M/2.5Gbps |
| SATA3.0 | 4 Ports (6Gbps) |
| USB 4.0 | 2 |
| GPIO | 8-bits GPIO |
| TPM | TPM2.0 (Optional) |
| Fan | 2 Ports: 1 port on COM module (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board |
| Power Type | ATX: Vin, VSB; AT: Vin |
| Vibration Resistance | 3.5 Grms |
| Graphics Frequency | 1.4GHz |
| DDI | 3 DDI ports support configurable HDMI/DisplayPort -HDMI 2.0b: 4Kx2K 48-60Hz 24bpp -DisplayPort 1.4a: 4096x2304 60Hz 36bpp |
| 2D/3D/HW Acceleration | DX12, Open GL 4.6, Vulkan 1.2 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
