SOM-DH3000

SOM-DH3000

Advantech

COM-HPC® Client Carrier for Size A, B and C Modules

COM-HPC Standard

COM-HPC is a next-generation computer-on-module. It supports more powerful computing unit, memory capacity up to 1TB, and offers next-generation high-speed interfaces such as PCIe Gen4/5 (16/32Gbps), USB4.0 (40Gbps), and 25G Ethernet. Such features meet growing demands for data processing and transmission. Coming with Client pinout types by Size A/B/C and Server pinout types by Size D/E, COM-HPC is adaptable to the future use of 5G networks.

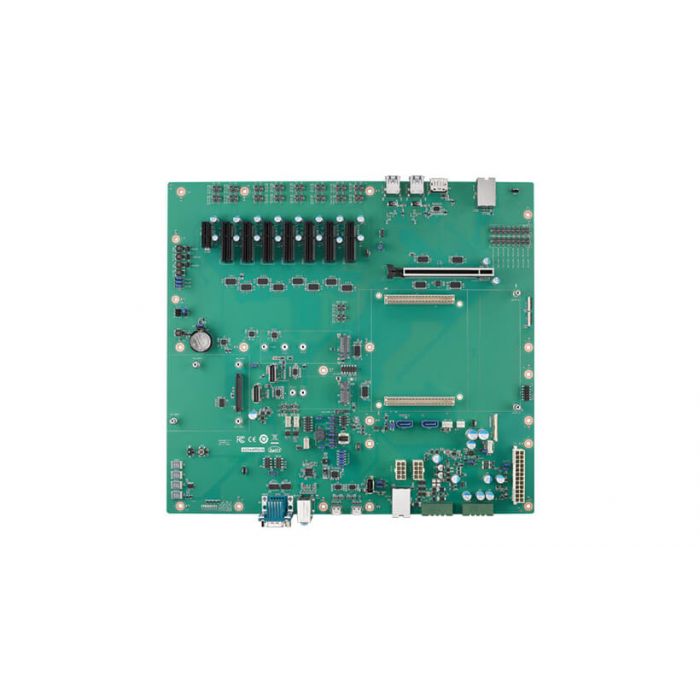

Advantech SOM-DH3000

COM-HPC® Client Carrier for Size A, B and C Modules

  • PICMG COM-HPC Client pinout
  • COM-HPC Size A, B and C compatible
  • Rich extension: 1 x PCIe x16 (Gen5), 7 x PCIe x4 (Gen5)
  • 3 x DDI outputs DP and 1 x eDP interfaces
  • 10/25 Gigabit Ethernet support by OCP mezzanine card
  • Visible Debug Utility: BIOS 80 Port and Power State
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features
  • PICMG COM-HPC Client pinout
  • COM-HPC Size A, B and C compatible
  • Rich extension: 1 x PCIe x16 (Gen5), 7 x PCIe x4 (Gen5)
  • 3 x DDI outputs DP and 1 x eDP interfaces
  • 10/25 Gigabit Ethernet support by OCP mezzanine card
  • Visible Debug Utility: BIOS 80 Port and Power State
Multiple Display eDP Port x 1 Display Port x 3
PCI Express x16 PCI Express x16 (Gen5) x 1
PCI Express x4 PCI Express x4 (Gen5) x 7
PCI Express x1 PCI Express x1 (Gen5) x 1
eSPI 1
M.2 E Key 1
M.2 M Key 1
SMBus 1
I²C Bus 2
SATA3.0 2 Ports
Boot SPI 1 (SPI Socket)
GP SPI 1 (6x 2P Pin Header)
GPIO 12 (12P Pin Header)
Fan 2 (1x 4P Smart Fan Header from Module side, 1x 3P System Fan Header)
Port 80 1
Power Type ATX: Vin, VSB; AT: Vin
More Information
Attribute Value
Data Sheet Click here to view
