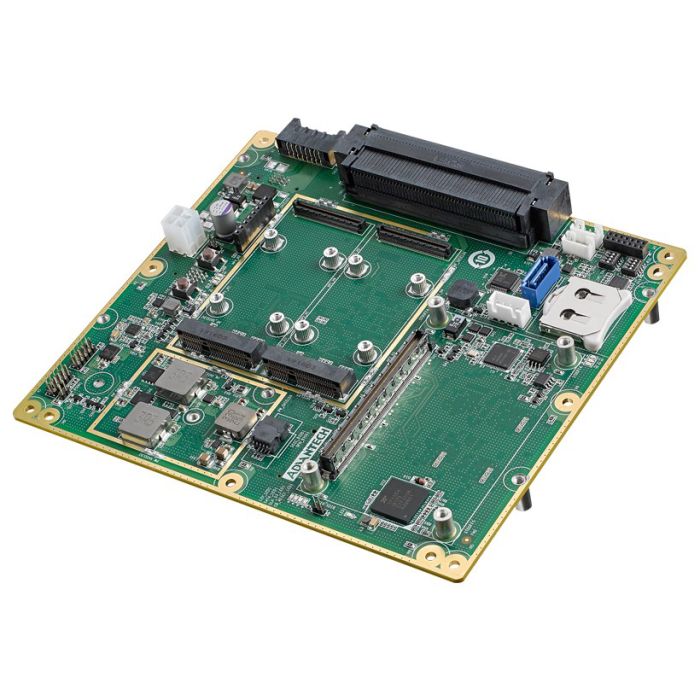

Advantech

MIL-Grade Application Board for COM Express R3.0 Type 10 Modules

Advantech Application Board is application-oriented development board which provides a schematic reference to reduce design effort at the development stage.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features
  • PICMG COMe R3.0 Type 10 Pin-out, Mini Module Only
  • I/O Interface: DDI, LVDS, Ethernet, USB 2.0/3.1, Audio, Serial, GPIO
  • Expansion: mini-PCIe/Acropack, SATA, M.2 2242/2280 (SATA only)
  • Option: MIL-Grade I/O & Power Modules SOM-EA8610 & SOM-EA8710
  • Compliant with MIL-STD-810G, IPC-A-610G Class 3
Form Factor Advantech COM Express Mini Module
Supply Voltage Vin: +12V (w/o Power Board SOM-EA8700)
Vin: +12~40V (w/ Power Board SOM-EA8700, nominal volotage +28V)
USB 3.1 Gen 2 (type A) 2.0000
USB 2.0 4 USB 2.0
COM Port 2 RS-232
4 RS-232/422/485 (from PCIe to UART bridge)
Mini PCIe 2 miniPCIe / Acropack
Audio 1 Audio input/ output
LCD 1 LVDS (signal channel)
M.2 B Key 1 M.2 2242/ 2280 (SATA singal only)
LPC Yes
SMBus Yes
I²C Bus Yes
Gigabit Ethernet 2 Gigan LAN (10/100/1000)
SATA 1 SATA
GPIO 8 GPIO with 8 bits (4 in/ 4 out w/ +3.3 & +5V selectable)
Reset Output 1
TPM TPM 2.0
Power Type ATX: Vin, VSB; AT: Vin or Vdc
DDI 1 DDI
Storage Temperature -40 ~ 85° C (-40 ~ 185° F)
Operating Temperature -40 ~ 85° C (-40 ~ 185° F)
Product Type Application Board
Humidity Operating: 40 °C @ 95% relative humidity, non-condensing
Storage: 60 °C @ 95% relative humidity, non-condensing
Dimensions 170 x 150 mm
