SOM-DB3520
SOM-DB3520
Advantech

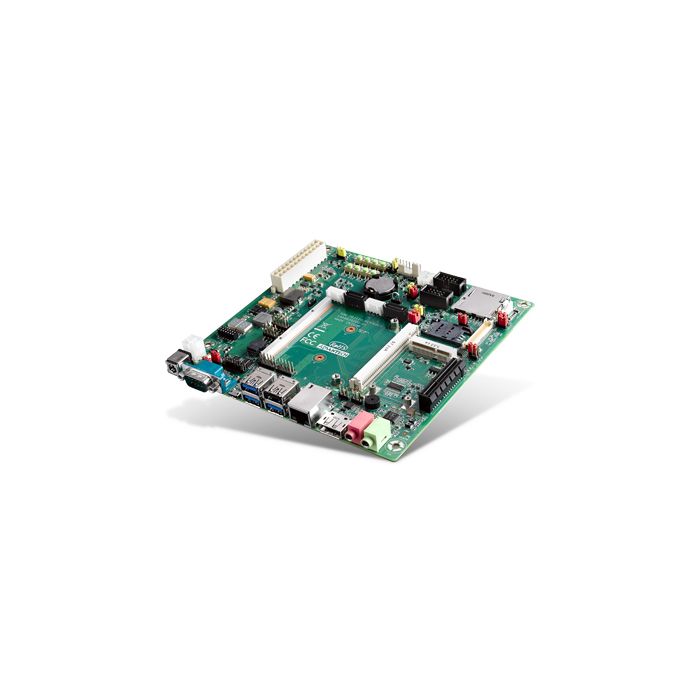

Development Board for Qseven R2.1 Modules
Advantech Development boards provide a schematic software and reference design to reduce efforts needed in development stage. Advantech Development Board can be used to test carrier board problems and support COM series, RTX, SMARC, Qseven, and ETX / XTX form factors.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Form Factor | Advantech Qseven CPU Module Series |
| USB 3.0 | 2 Ports (Default), (Option1: 1 USB3.0 & 8 USB2.0; Option 2: 3 USB 3.0 & 4 USB 2.0) |
| USB 2.0 | 6 Ports (Default) |
| COM Port | 2 Ports, COM1 (DB9): RS232/422/485; COM2 (box header): RS232 |
| Mini PCIe | 1 (Option) |
| Audio | HD Audio |
| SIM Card Slot | 1 |
| LCD | LVDS: Dual channel 18/24-bit (eDP optional) |
| Multiple Display | HDMI/DVI optional |
| PCI Express x1 | 1 PCIe x4 slot (Default) |
| LPC | Yes |
| SMBus | Yes |
| I²C Bus | Yes |
| Gigabit Ethernet | 1 Giga LAN |
| SATA | 2 Ports |
| SPI Bus | 1 Socket |
| SDIO | 1 |
| Smart Fan | 1 Ports |
| Power Type | ATX/AT Modes, DC-in |
| Vibration Resistance | 3.5 Grms |
| Operating Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Product Type | Development Board |
| Humidity |
Operating: 40 °C @ 95% relative humidity, non-condensing
Storage: 60 °C @ 95% relative humidity, non-condensing |
| Dimensions | 170 x 170 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
