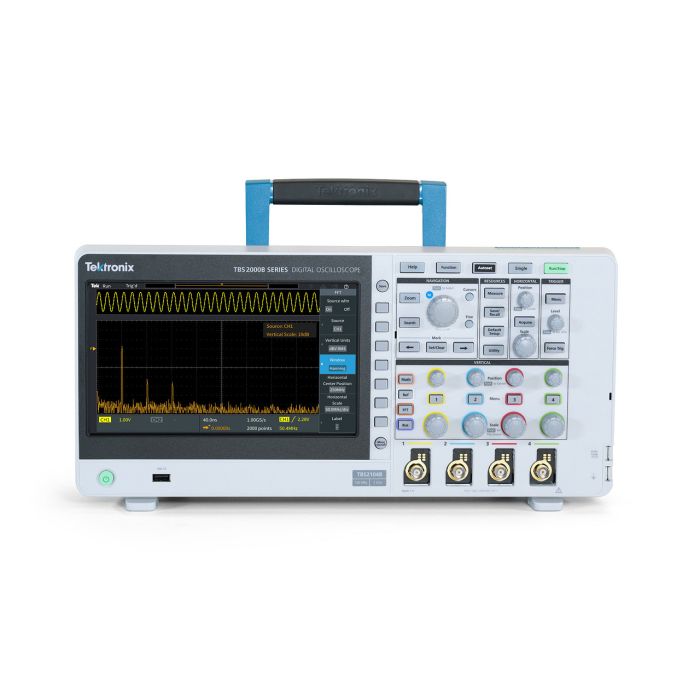

TBS2102B

Key performance specifications

• 2 and 4 analogue channel models
• 200 MHz, 100 MHz, and 70 MHz bandwidth models up to 2 GS/s sampling rate
• 5 M record length on all channels
• 5 year warranty

Key features

• 9-inch WVGA color display with 15 horizontal grids shows 50% more signal
• TekVPI probe interface supports active, differential, and current probes with automatic scaling and units
• New front-end design enables more accurate measurements
• 32 automated measurements, and FFT function for quick waveform analysis
• Search and Mark features for easy identification of events that occur in the acquired waveform
• HelpEverywhere® provides helpful on-screen tips for new users
• Built-in Scope Intro handbook provides operating instructions and oscilloscope fundamentals
• The instrument user interface and the front panel overlay is translated into 10 languages

Connectivity

• USB 2.0 host port on the front panel for quick and easy data storage
• USB 2.0 device port on rear panel for easy connection to a PC
• 10/100BASE-T Ethernet port for remote control over LAN
• Wi-Fi interface provides wireless communications capability support 1

Education

• Courseware function presents lab exercise guidance on the display
• Autoset, Cursors, and Automated measurements can be disabled to help educators to teach basic concepts to students
