TDP0500

A high voltage differential probe is used for measuring the voltage difference between two test points where neither test point is at ground. High voltage differential probes from Tektronix can be used for signals up to 6000 V.  These probes are the best choice for making non-ground referenced, floating or isolated measurements in large part due to their common mode rejection capability. These products are designed, manufactured, and serviced by Tektronix.

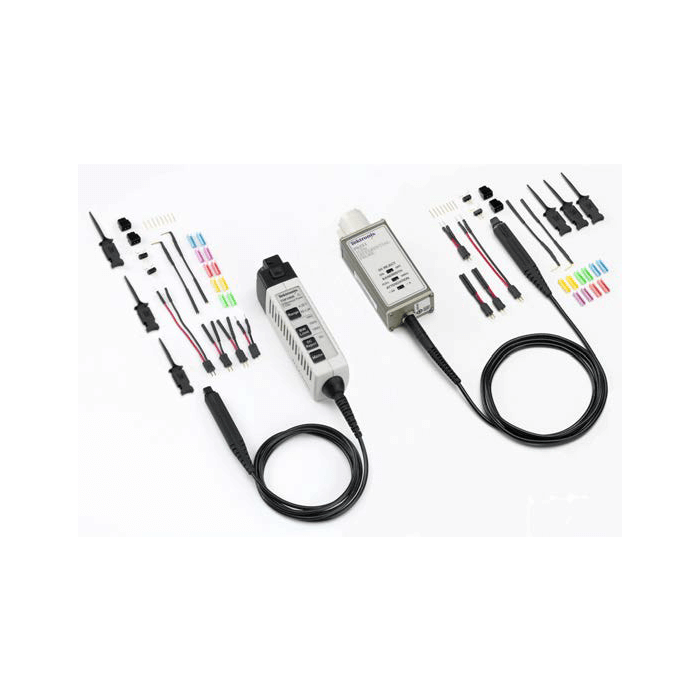

The TDP1000, TDP0500, and P6251 High-voltage Differential Probes are specifically designed for use with and direct connection to Tektronix oscilloscopes with either the TekVPI™ probe interface, or TekProbe BNC Interface. These probes achieve high-speed signal acquisition and measurement fidelity by solving traditional measurement challenges:

• Outstanding electrical performance
  • Selectable bandwidth-limiting filters
  • DC reject
• Versatile DUT connectivity
  • Small compact probe head for probing small geometry circuit elements
  • Straight pin, square pin, solder down, variable pitch standard accessories
  • Robust design for reliability
• Easy to use
  • Provides automatic units scaling and readout on the oscilloscope display
• TDP1000, TDP0500
  • Connect directly to oscilloscopes with the TekVPI™ probe interface
  • Easy access to scope-displayed probe menu for probe setup control and operating status information
  • Remote GPIB/USB probe control through the oscilloscope
  • AutoZero – zeros out output offset P6251
  • Connect directly to the TekProbe™ interface oscilloscopes, or to TekConnect® oscilloscopes using TCA-BNC adapter
