TDP7706

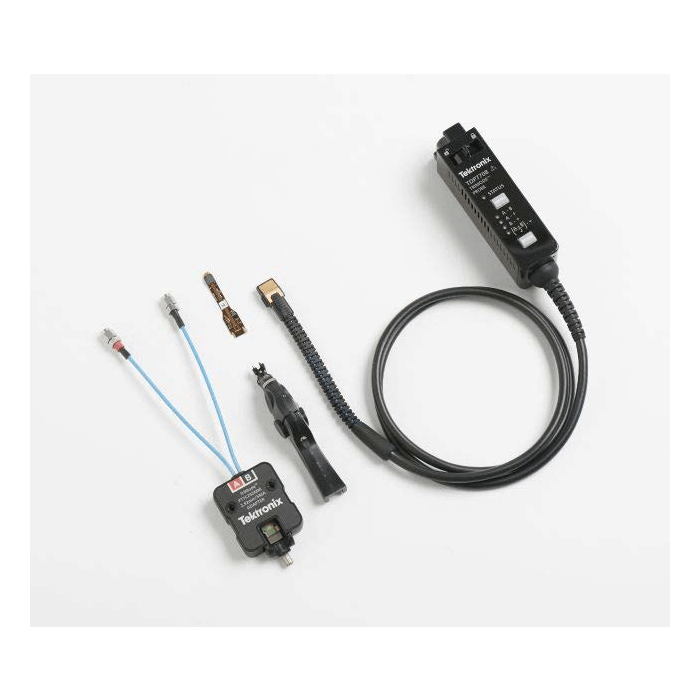

The Tektronix TDP7706 TriMode probe provide the highest probe fidelity available for real-time oscilloscopes. In addition, with connectivity innovations such as solder down tips with the probe’s input buffer mounted only a few millimeters from the end of the tip, the Tektronix TDP7706 provides unmatched usability for connecting to today’s most challenging electronic designs.

TekFlex connector technology

The Tektronix TDP7706 TriMode probe uses new TekFlex connector technology that combines a high-speed signal path with power and communication support for an active buffer tip in a single, easy-to-connect accessory connector. The TekFlex connector has a pinch-to-open design that when open requires minimal force to attach an accessory tip. When the TekFlex connector is closed, it provides a secure connection to the accessory to avoid accidental disconnections.

Coaxial input (SMA) adapter

RF/coaxial connectors, such as SMA, are often found on test fixtures or on prototype board designs. Attaching a TDP7706 probe to these on-board connectors is easy with the SMA adapter. The P77C292MM adapter allows you to connect to 2.92 mm, 3.5 mm or SMA connectors with full bandwidth and low noise. The P77C292MM adapter includes TriMode functionality enabling differential, single-ended, and common mode measurements.

The termination voltage can be set manually or automatically using voltage sense circuitry in the TDP7706 probe and covers a range of ±2.5 V.

Browser accessory for handheld probing

When you need to make a quick measurement or debug a problem, the TDP7706 browser accessory provides a simple-to-use option. With precision-engineered tips that are easy to see and position accurately, the P77BRWSR handheld browser accessory enables hand or fixtured probing and is ideal for probing fine pitch components and differential traces with spacing as narrow as 0.2 mm (.008 in).
