Bird

SiteHawk Test Kit for cable and antenna testing up to 6GHz

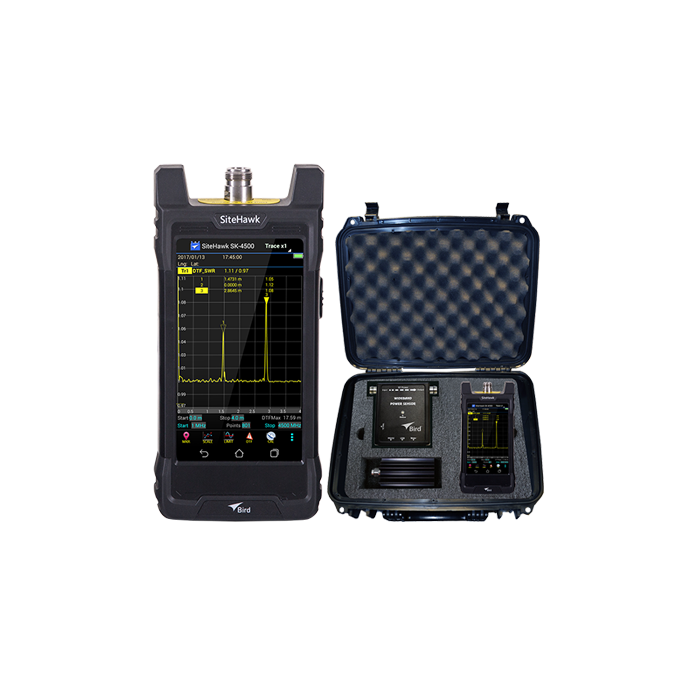

main product photo
Up to 6 GHz Coverage, SiteHawk Cable and Antenna Test Kits

Need to quickly identify faulty antennas, cables and connectors to get your radio system back into service? Avoid the downtime and expense of trial and error of swapping components to fix your issue with the Bird® SiteHawk (General Purpose) Test Kit.

POWER SENSOR SELECTION GUIDE

Select one of the five RF Power Sensor Options below. Each Bird SiteHawk Test Kit includes the SK-4500-TC Cable and Antenna Analyser. The SK-6000-TC can be substituted for SK-4500-TC by adding -6 to the part number, e.g. 7003A001-5-6.
Kit Number RF Power Sensor Options
7003A001-5 No Sensor
7003A001-6 7020-1-010101, 350 MHz - 4.0 GHz Wideband Power Sensor
7003A001-7 7020-1-030301, 25 MHz - 1.0 GHz Wideband Power Sensor
7003A001-8 5017D, 500mW - 500W Avg, 1300W Peak Wideband Power Sensor
7003A001-9 7022-1-020201, 350-6000 MHz Statistical Power Sensor
7003A001-19 5019D, 100mW - 100W Avg. 260W Peak Wideband Power Sensor
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • Utilise the Measure/Match function to sweep your system to determine how well your components are matched to 50 ohms.
  • Use the Distance to Fault (DTF) to display RF return loss or VSWR data versus distance. Allows quick identification of poor connections, damaged cables, or faulty antennas.
  • Multiple models available utilising Bird power sensors with varying frequency and power ranges in order to select the model best suited to the application.
More Information
Attribute Value
Data Sheet Click here to view
