2230-60-3

Keithley Instruments

Programmable 3-Channel Power Supply, 375 W, Two 60 V, 3 A Channels, One 5 V, 3 A Channel

Skip to the beginning of the images gallery

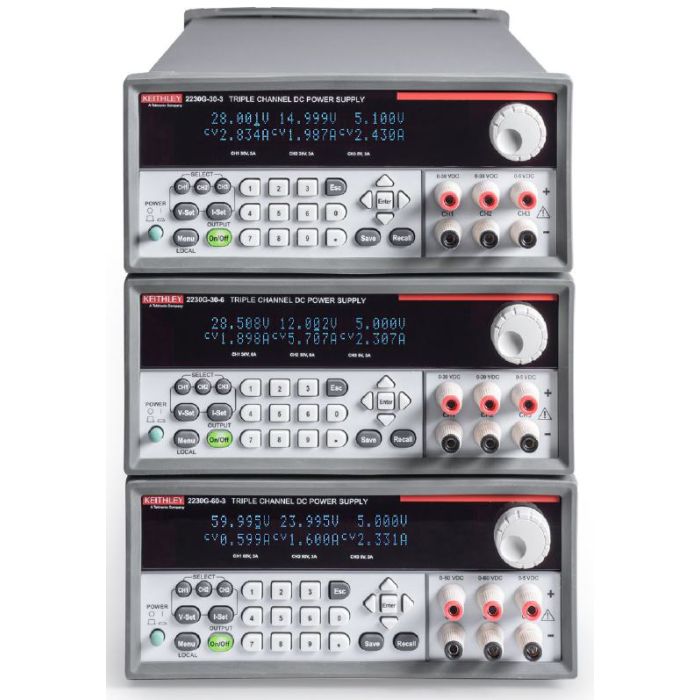

The Series 2230 3-channel programmable power supplies provide up to 375 W of power in a space-saving 2U high, half-rack width enclosure to power automotive circuits, LED drivers, power supplies, power ICs, and other highpower circuits. The 2230-30-6 and the 2230-60-3 supplies output as much as 375 W. The 2230-60-3 has two 60 V, 3 A channels, both 375 W supplies have a 5 V, 3 A channel as the third channel.

These three supplies are linear power supplies; thus, they are low noise supplies to have minimal impact on a device-under-test (DUT). Each channel has a rectangular output characteristic to enable obtaining the full current at the maximum voltage so that the 2230-30-6 can supply 30 V to a 6 A load and the 2230-60-3 can supply 60 V to a 3 A load.

Contact our team for stock availability and product options.

Price £1,800.00

Request a quote

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

Find out more

[email protected]

+44 330 313 3220

Specifications

More Information
Attribute	Value
Key Features	375 W models have two 30 V, 6 A channels or two 60 V, 3 A channels and one 5 V, 3 A channel All channels are independently controlled and are isolated to power a wide range of test setups All channels have remote sensing so the programmed voltage is accurately applied to the load Set and monitor output voltages with 0.03% basic accuracy and 1 mV resolution Monitor load current with 0.1% basic accuracy and 1 mA resolution Low noise, linear regulation with <1 mV rms ripple and noise Combine channels in series to output as high as 60 V and in parallel with two or three channels to create capacity as high as 15 A (2230-30-6) Voltage and current outputs of three channels are displayed simultaneously for immediate observation of each output state USB and RS-232 interfaces and rear panel connections for automated test convenience
Manufacturer Product Family	Series 2230 High Power Programmable Power Supplies
Power	375 W
Outputs	Triple Output
Applications	High power analog ICs Automotive circuits Telecom infrastructure circuits LED driver circuitry Wide Bandgap modules
