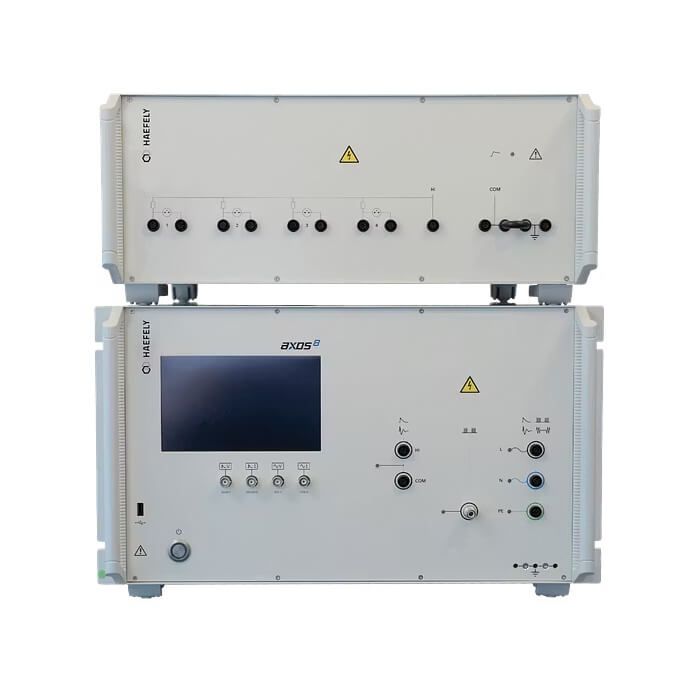

AXOS8 Telecom Wave - EMC Test System (Telecom) According To IEC/EN 61000-4-5
A Test System That Combines The Haefely AXOS 8 And The TW8
The AXOS 8 - Telecom is a test system that combines the AXOS 8 and the TW8. This system will automatically perform the 10/700 us Telecom Wave impulse.
The AXOS 8 - Surge CW can be upgraded to perform 5 kV EFT/Burst, 7 kV Ring Wave, 7 kV Telecom Wave (10/700 us), AC/DC Voltage Dips and Pulsed Magnetic Field tests via software and/or hardware upgrades.
The expandable functionality allows for quick and completely automated testing to the most common IEC, EN, ANSI, IEEE and UL standards.
The AXOS unit can either be operated via the front panel by a large colour graphic interface or remotely from the PC. The easy-to-use menu, together with the availability of predefined test routines for different standards, makes testing easy and reliable, even for less frequent users. Numerous additional functions, such as an external start/stop function, allow easy integration of the test system in customer-specific test environments.
Key Features
- Easy to operate with manual and automated test modes, software-assisted test preparation, pre-defined test routines and visually aided test setups
- Economic and Efficient: Touch screen guarantees reduction of time and effort - Experience and know-how at a reasonable price
- Safe and reliable operation by using safety interlock, warning lamp and emergency stop functions
- Voltage and current monitoring of surge impulses and EUT power provides valuable feedback to the test engineer
- Automatic generation of test report including test parameters, test setup and test result
For more information about this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Included Accessories | Mains Cable, User Manual, Calibration certificate |
| Dimensions | 19“ / 4U (45 x 18 x 49 cm) |
| Weight | 25 kg |
| Standards |
IEC/EN 61000-4-5 Surge (1.2/50 us…8/20 us) *In combination with external Telecom Wave Module “TW8” **Additional antenna coil “MSURGE-A” required |
| Applications |
|
| Control Power | 85 V - 264 V; 50/60Hz |
| User Test Storage | Unlimited |
| Remote Interface | Ethernet, RJ45 |
| Display | 7“ / 800x480 / 24 bit with touchscreen |
| External Trigger Input | 5 V TTL |
| Trigger Output | 5 V TTL |
| EUT Failed Input | 5 V TTL |
| Warning Lamp Output | 2 x 24 V / 1 A DC |
| USB | For USB memory stick |
| AUX Interface | D-sub 37p for external CDN, external transformer etc… |
| Sync Input | BNC, 10 V – 264 V AC |
| External Start/Stop Input | 5 V TTL, starts / stops predefined test sequence |
| Analogue Output | 0-10 V, for use with external options |
| Safety Circuit | Stops the test when unlocked |
| Telecom Wave: Output Voltage | 0.2-7.0 kV ± 10% |
| Telecom Wave: Front Time OCV | 10 µs ± 30% |
| Telecom Wave: Decay Time OCV | 700 µs ± 20% |
| Telecom Wave: Polarity | Positive / negative / alternate |
| Telecom Wave: Output Voltage | 4 mm banana socket |
| Telecom Wave: Source Impedance Coupling |
15 Ohm x 1 |
| Telecom Wave: Front Time SCC | 5 µs ± 20% |
| Telecom Wave: Decay Time SCC | 320 µs ± 20% |
| Telecom Wave: Module Weight | 10 kg |
| Telecom Wave: Module Dimensions | 19'' / 4U, (45 x 18 x 49 cm) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
