FA1816

FA1816

Hioki

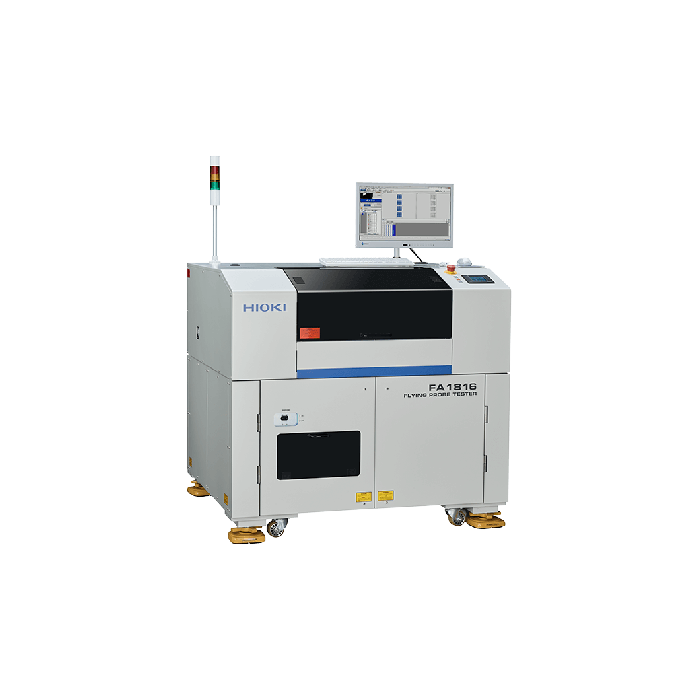

Flying Probe Tester

Top share of printed circuit boards (PCBs) inspection system "capacitive measurement method" models

Hioki PCB and substrate inspection equipment leverages our core competency in high-precision component testing. The FA1816 is a horizontal-loading, single-side flying probe tester with a rapid 100 times/second test speed.

Key Features

  • High-speed pattern testing using the capacitive measurement method - Max. 100 points/sec.
  • Reduce probe marks in combination with the latest probes
  • Significantly improved operability
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply

200 V, 220 V, 230 V, 240 V AC single phase (specify at time of order),

50 Hz/ 60 Hz, Maximum power consumption: 3 kVA

Measurement Speed Max. 100 points/sec. (0.1 mm movements, 2-arm simultaneous probing, capacitance measurement)
Number Of Arms 2 (top surface × 2)
Compatible Probes 1172 series, CP1072 series
Number Of Test Steps 999,999 steps
Test Parameters And Measurement Ranges

Resistance measurement: 40.00 μΩ to 40.00 MΩ

Insulation measurement: 1.000 kΩ to 500.0 MΩ

Capacitance measurement: 100.0 fF to 10.00 μF

Leakage current measurement: 1.000 μA to 10.00 mA

High-voltage resistance measurement: 1.000 kΩ to 500.0 MΩ

Capacitor insulation measurement: 1.000 kΩ to 10.00 MΩ

Open measurement: 4.000 Ω to 4.000 MΩ

Short measurement: 400.0 mΩ to 40.00 kΩ

Judgment Range -99.9% to +999.9% or absolute value
Minimum Pad Pitch 40 μm (with CP1075-09)
Minimum Pad Size 10 μm (with CP1075-09)
Testable Board Size 50 mm (1.97 in) W × 50 mm (1.97 in) D to 610 mm (24.02 in) W × 510 mm (20.08 in) D, Thickness 0.1 mm (0.004 in) to 3.2 mm (0.13 in)
Maximum Testable Area 610 mm (24.02 in) W × 510 mm (20.08 in) D
