3280-10F
3280-10F
Hioki

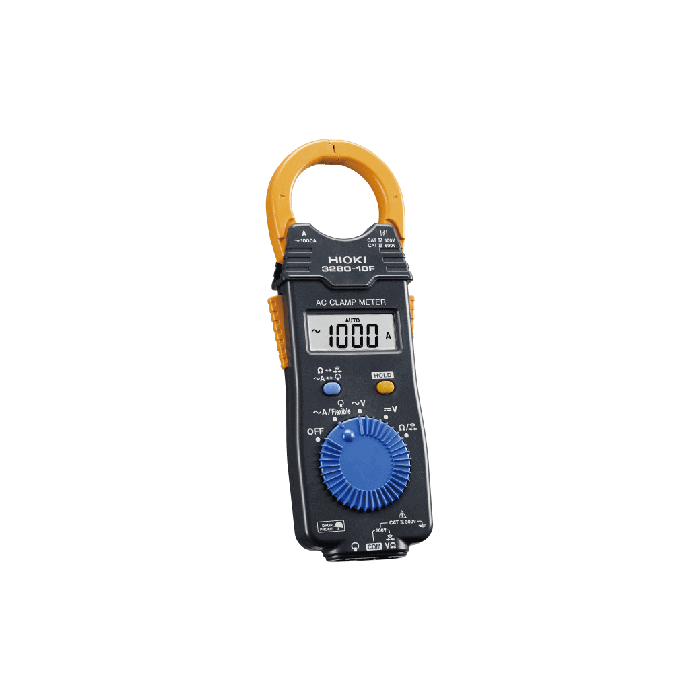

AC Clamp Meter
Rugged & Compact, Essential Equipment for Professional Electricians: Measure Current and Voltage with a Single Instrument
Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The 3280-10F is an average rectifying 1000A AC clamp meter that features a broad operating temperature range of -25°C to 65°C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.
CAT IV 300 V (Current)
CAT III 600 V (Current)
CAT III 300 V (Voltage)
Key Features
- Measure the fundamental waveform component using the average rectified method
- Expanded -25°C to 65°C operating temperature range
- Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires
- Drop proof design withstands drop from a height of 1 meter
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Power Supply | Coin type lithium battery (CR2032) ×1, Continuous use 120 hours |
Included Accessories | Carrying case 9398 × 1, Test lead L9208 × 1, Coin type lithium battery (CR2032) × 1, Instruction manual × 1 |
Display | LCD, max. 4199 dgt., Display refresh rate: 400 ms |
Dimensions and Weight | 57 mm (2.24 in) W × 175 mm (6.89 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz) |
Other Functions | Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter |
Dustproof and Waterproof | IP40 dustproof and waterproof (while in storage) |
Core Jaw Diameter | φ 33 mm (1.30 in) |
DC Voltage range | 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. |
AC Voltage range |
4.199 V to 600 V, 4 ranges |
AC Current Range |
41.99 to 1000 A, 3 ranges (50 Hz to 60 Hz, Average rectified), |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
