LR5092
LR5092
Hioki
Data Collector
Wirelessly Transfer Logging Data from a LR5000 Series Data Logger

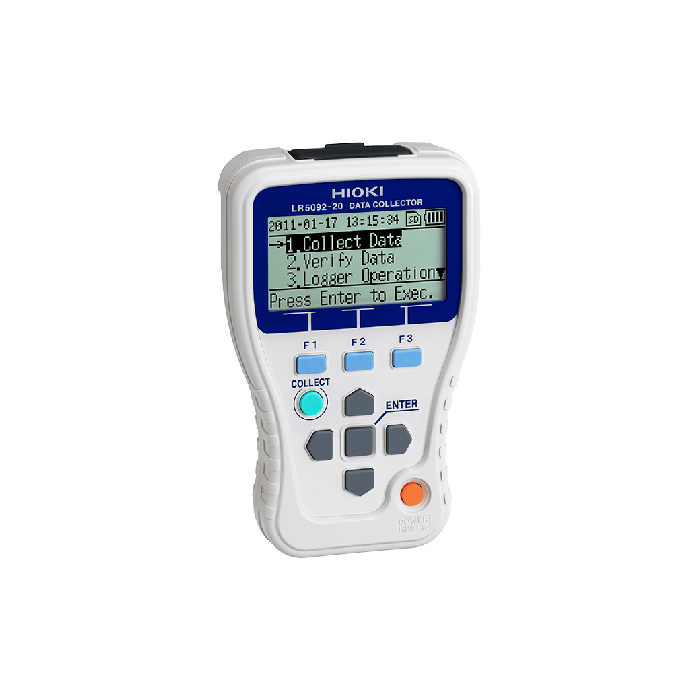

The Hioki LR5092 is a data collector for wirelessly collecting data from the LR5000 Series Data Loggers. Simply dock the Data Collector onto the data logger to transfer data using infrared, then upload the data to a PC using USB or SD card. A maximum of 60,000 data x 16 channels can be collected up to 500 times on 2 batteries.
Key Features
Transfer the recorded data from the LR5000 Series Data Logger to a PC
Save data from data loggers in the built-in memory or on an SD card (LR5092-20)
Send settings from a PC to a data logger
Use the included software to easily graph and print data
Use the included software to calculate maximum, minimum, and average values and more between cursors
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Included Accessories | Instruction manual ×1, Operation guide ×1, LR6 (AA) Alkaline battery ×2, USB cable (1 m) ×1, CD (Application software "LR5000 Utility") × 1 |
| Display |
Data logger setting conditions |
| Functions |
Send data from a data logger to the internal memory or an SD card, then display a graph. |
| Communication Method |
Between data loggers: Infrared communications |
| Internal Memory |
60,000 data elements ×16ch (instantaneous value mode) |
| Removable Storage Media |
SD memory card |
| Power source |
DC 3 V (LR6 (AA) Alkaline battery ×2) |
| Dimensions and Weight | 91 mm (3.58 in) W × 141 mm (5.55 in) H × 31 mm (1.22 in) D, 215 g (7.6 oz) (excluding batteries and SD memory card) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
