9661
9661
Hioki

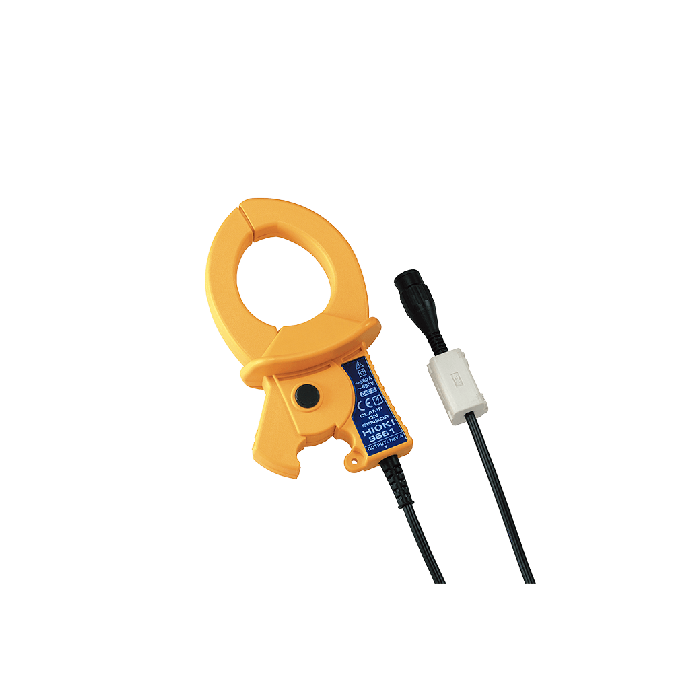

Clamp on Sensor
This product is available in 5-7 weeks
For measuring load current, voltage output sensor 500 A AC
Hioki current sensors are best-in-class devices for use with power meters and PQAs. The 9661 is a 500 A AC clamp sensor with voltage output for measuring load current.
CAT III 600 V
Key Features
- For inverter devices or commercial power lines
- Measure up to 500 A
Contact our expert team
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
Price
£259.82
| Attribute | Value |
|---|---|
| Max Allowable Input | Continuous 550 A (45 to 66 Hz) |
| Dimensions and Weight | 78 mm (3.07 in)W × 152 mm (5.98 in)H × 42 mm (1.65 in)D, 380 g (13.4 oz) Cord length 3 m (9.84 ft), Output terminal: BNC |
| Basic Accuracy | ±0.3% rdg. ±0.01% f.s.±0.5° (45 Hz to 5 kHz) |
| Rated Current | 500 A AC |
| Frequency Bandwidth | Within ±1% at 40 Hz - 5 kHz (deviation from amplitude accuracy) |
| Core Diameter | φ 46 mm (1.81 in) or less |
| Operating Temperature and Humidity | 0°C to 50°C (32°F to 122°F), 80% RH or less (no condensation) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
