Hioki

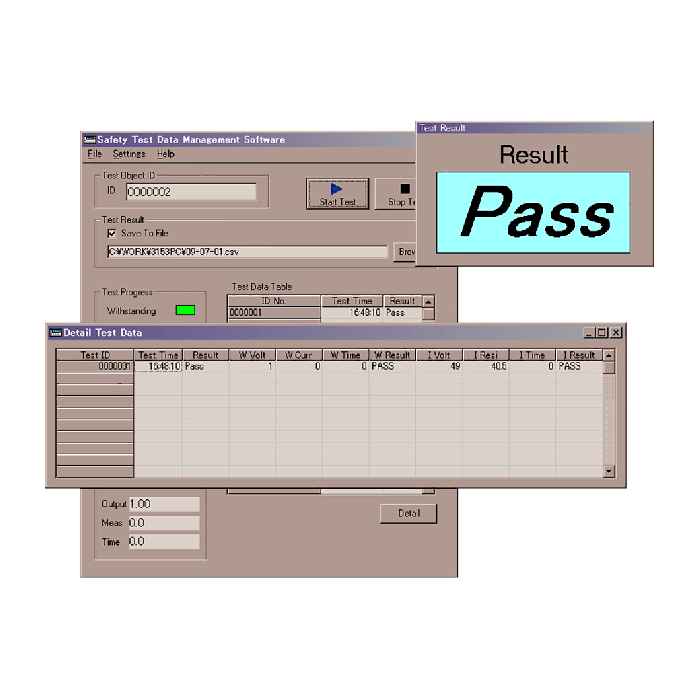

Safety Test Data Management Software
PC-controlled Testing of Insulation, Withstand Voltage (Hipot), Protective Continuity, and Leakage Current
The Hioki electrical safety test instrument series is designed for insulation resistance and voltage withstand testing of electrical devices and components according to various safety standards. The 9267 is a PC application that supports the operation of Hioki electrical safety testers using a Windows computer.
Key Features
- Control the electrical safety measuring instruments from a computer
- Perform automatic insulation and dielectric strength (hipot) testing of up to 32 points with the High Voltage Scanner 3930
- Easily create and save insulation, dielectric strength, and continuity test records with a computer as required by the
- Electrical Appliance and Material Safety Act (Japan)
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Interfaces | RS-232C (USB communication, or RS-232C with ST5540, ST5541) |
| Compatible Models |
ST5520*, ST5540/ST5541, 3153, 3154, 3156, 3157, 3158, 3159, 3174, 3332, 3333, 3334, and PLCs from various manufacturers (for connection switching) *Control of the ST5520 is subject to certain limitations. |
| Supplied Media | CD-R ×1 |
| Operating Environment | Windows 10 (32-/64-bit), Windows 7 (32-/64-bit), Vista (32-bit), XP/2000 |
| Test Types | Insulation and dielectric strength, protective continuity, leak current, energization |
| Recording Data | Recording of test results (measured values) as a text file (CSV format) |
