ST5540
ST5540
Hioki
Leak Current HiTester
Leak Current Measurement, an Essential Part of Electrical Safety (for medical-use electrical devices)
To ensure the safe use of electrical products, electrical safety tests such as insulation resistance, withstand voltage, ground resistance, and leakage current must always be conducted. Hioki Leakage Current Testers comply with laws and standards regarding medical electrical equipment as well as non-medical electrical equipment and can be used to measure leakage current in all types of electrical products from computers to medical equipment.
The ST5540 consists of measurement networks that simulate the human body and a high-frequency volt meter and is also capable of switching power supply polarities and making measurements under simulated single fault conditions in equipment under test.
Key Features
- Compliance with IEC 60601-1:2005 Ed 3.0, JIS T 0601-1:2012 for medical-use electrical devices and essential to electrical safety (*1)
- Compliance with Electrical Appliances and Materials Safety Act, JIS, IEC, and UL standards for general-use electrical devices
- Uninterrupted polarity switching function dramatically reduces cycle time
- Support for rated currents up to 20 A gives the instrument more than adequate capability for testing products designed to comply with new standards
- Communications functionality and external I/O support allow automatic testing on production lines
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|

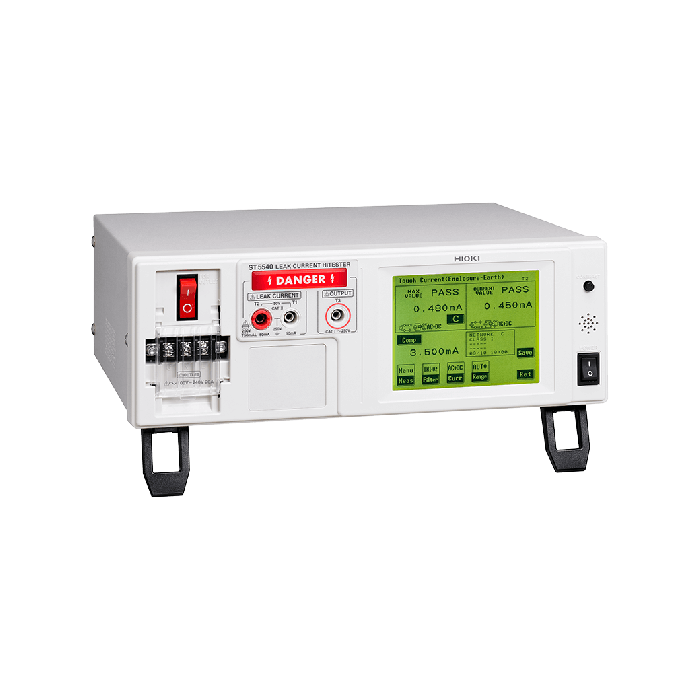

| Notes | The photograph portrays the Japanese version of the product. Other countries’ versions of the product lack the outlet on the front panel.Always use an isolation transformer when measuring leak current for medical-use electrical devices. The ST5540 does not include an isolation transformer. When measuring medical-use electrical devices, use a step-up isolation transformer or similar component operating at 110% of the rated supply voltage as the power supply for the device under test. |
| Power Supply | 100/120/220/240 V AC (specify at time of order), 50/60 Hz, 30 VA rated power |
| Interfaces | External I/O, medical device relay output, USB 1.1 (communications), RS-232C |
| Functionality | 110% voltage application, automatic test, data storage for 100 target devices, clock, data backup, printed output (optional), etc. |
| Dimensions and Weight | 320 mm (12.60 in)W × 110 mm (4.33 in)H × 253 mm (9.96 in)D, 4.5 kg (158.7 oz) |
| Measurement Methods |
Measurement of voltage drop across body simulated resistance points, Calculation and display of current values, True rms measurement, Measurement unit floats relative to instrument ground. |
| Measurement Range |
DC / AC / AC+DC mode: 50.00 mA/ 5.000 mA/ 500.0 μA/ 50.00 μA |
| Accuracy |
DC measurement: ±2.0% rdg. ±6 dgt. (typ.) |
| Accessories | Test lead L2200 (for ST5540, Red ×2, Black ×1) ×1 set, Enclosure probe 9195 ×1, Power cord ×3, Spare fuse for measurement line ×1, Instruction manual ×1, CD-ROM ×1 |
| Measurement Current | DC, AC (true rms, 0.1 Hz to 1 MHz), AC+DC (true rms, 0.1 Hz to 1 MHz), AC peak (15 Hz to 1 MHz) |
| Measurement Modes | Leak current measurement, voltage measurement, safety conductor current measurement |
| Standards Compliance (NW: body simulated resistance) |
[NW-A] [NW-B1] [NW-B2] [NW-C] [NW-D] [NW-G] |
| Leak Current Measurement | Ground leak current, 3 types of contact current, 7 types of patient leak current, patient measurement current, 4 types of total patient leak current, free current measurement, 3 types of enclosure leak current |
| Target Device Power Supply Input | 100 to 250 V AC, 50/60 Hz Rated current input from terminal block: 20 A |
| Target Device Power Supply Output | Output from terminal block: 20 A Output from outlet: 15 A |
