3506-10
3506-10
Hioki

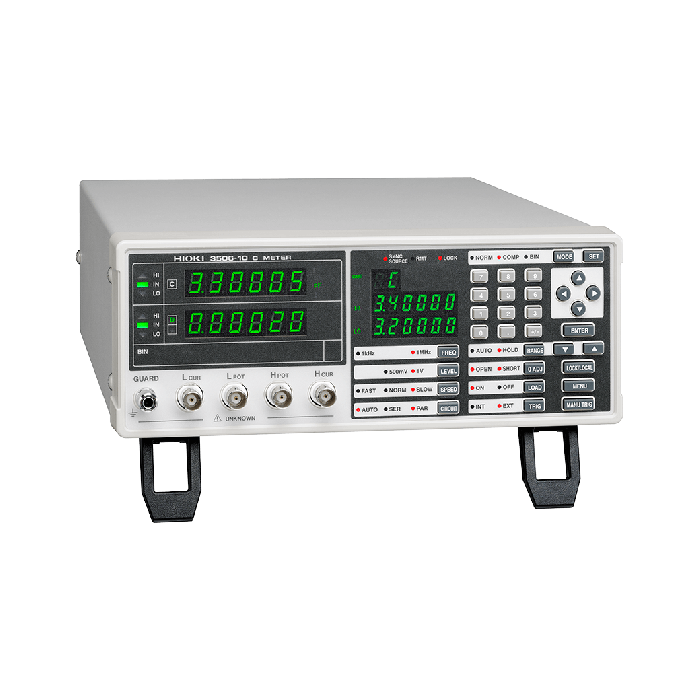

Capacitance Meter
This product is available in 5-7 weeks
Dual-band 1kHz/1MHz Capacitance Meter for High Speed Testing of Ceramic Capacitors on Production Lines
Hioki LCR Meters and Impedance Analysers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The 3506-10 is a dual-band capacitance meter designed to be integrated with automatic taping machines and sorters for production of MLCC (multi-layer ceramic capacitors).
Key Features
- High-speed analogue test time of 0.6 ms (at 1 MHz)
- Improved noise resistance and enhanced repeatability in measurement precision even for production lines
- 1 kHz and 1 MHz measurement frequency supports stable low capacitance testing with taping machines
- BIN function, for easy component screening
Contact our expert team
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
Price
£4,231.94
| Attribute | Value |
|---|---|
| Power Supply | Selectable from 100, 120, 220 or 240 V AC ±10 %, 50/60 Hz 40 VA max. |
| Included Accessories | Power cord × 1, Instruction manual × 1, Spare fuse × 1 |
| Display | LED (six digits, full scale count depends on measurement range) |
| Measurable Range | C: 0.001 fF to 15.0000 μF, D: 0.00001 to 1.99999, Q: 0.0 to 19999.9 |
| Functions | BIN (measurement values can be classified by rank), Trigger-synchronous output, Setting configurations can be stored, Comparator, Averaging, Low-C reject (bad contact detection), Chatter detection, Current detection circuit monitoring, Applied voltage value monitoring, EXT. I/O, RS-232C, GP-IB |
| Dimensions and Weight | 260 mm (10.24 in) W × 100 mm (3.94 in) H × 298 mm (11.73 in) D, 4.8 kg (169.3 oz) |
| Basic Accuracy | (Typ.) C: ±0.14 % rdg., D: ±0.0013 |
| Measurement Parameters | C (Capacitance), D (loss coefficient, tan δ), Q (1/tan δ) |
| Measurement Speed | 1.5 ms: 1 MHz, 2.0 ms: 1 kHz (Typ. value. Depends on measurement configuration settings) |
| Measurement Frequency | 1 kHz, 1 MHz |
| Measurement Signal Level | 500 mV, 1 V rms |
| Output Impedance | 1 Ω (at 1 kHz in 2.2 μF and higher ranges), 20 Ω (in ranges other than the above) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
