SS7012

SS7012

Hioki

DC Signal Source

This product is available in 5-7 weeks

DC Voltage and Current Signal Generator and Tester for Routine Maintenance of Standard Devices

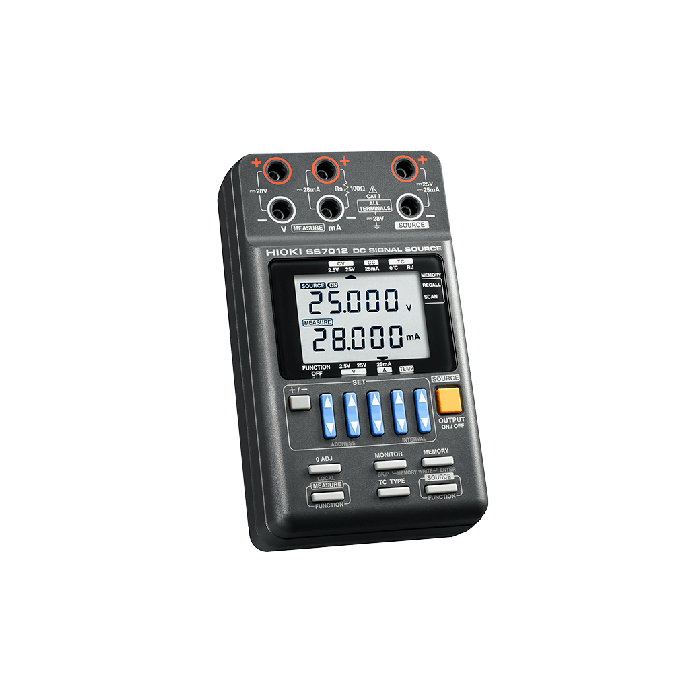

The Hioki SS7012 is a compact DC signal source and calibrator that is used to perform maintenance or loop tests of instrumentation systems and can be operated from a computer via a USB cable. It can also be used to calibrate thermometers and measure DC voltage and DC current.

Key Features

  • Improve stability and reduce calibration costs compared with the previous HIOKI model
  • For instrumentation systems (4 - 20 mA) and loop testing
  • Check temperature control equipment and electric distribution
  • 8 types of thermocouples to test thermoelectric power generation
  • Ideal for electrical device evaluating and routine maintenance of production equipment such as calibrators
  • Use the max. 25 mA DC sink as an electric load
In stock
£1,166.40
More Information
Attribute Value
Circuit Method Bipolar sink and source
Constant Voltage

2.5 V: 0 to ±2.5000 V (±0.03 % of setting ±300 μV, 100 μV resolution)
25 V: 0 to ±25.000 V (±0.03 % of setting ±3 mV, 1 mV resolution)

Constant Current 25 mA: 0 to ±25.000 mA (±0.03 % of setting ±3 μA, 1 μA resolution)
Thermoelectric Power Generation K: at TC: 0 ˚C, -174.0 to 1372.0 ˚C (±0.05 % of setting ±0.5 ˚C, 0.1 ˚C resolution), Other types: E, J, T, R, S, B, N selectable
Standard Resistance (Rs) 100 Ω (±0.2 Ω)
Automatic Generation Number of memory steps: 20, Interval time: 1 to 99 sec (at CV, CC, TC mode)
More Information
Attribute Value
Data Sheet Click here to view
