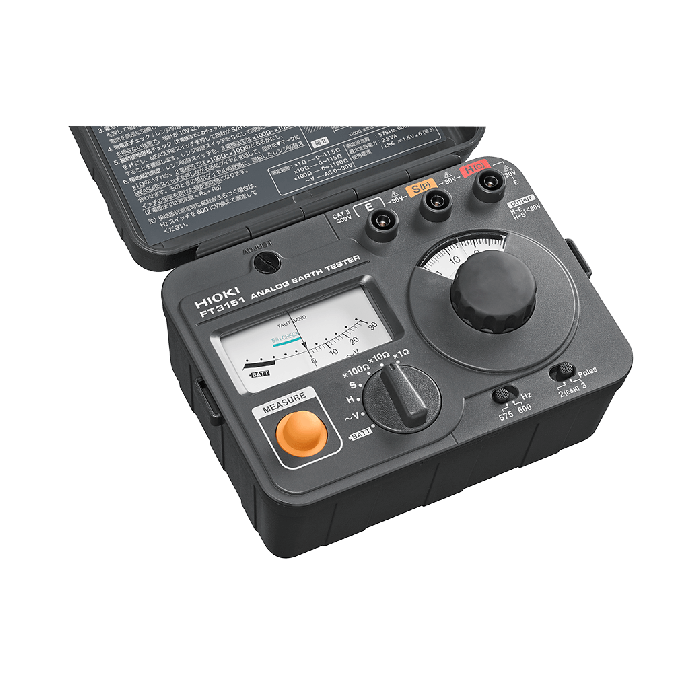

FT3151

FT3151

Hioki

Analogue Earth Tester

Classic Ground Resistance Tester Using 3-Pole Method with Easy Cord Winding System

Earthing or grounding of electrical equipment is essential to maintain safety, protecting lives, as well as to prevent damage to equipment. The FT3151 Analog EarthTester uses the AC phase differential system to measure earthing resistance, which assures that accurate measurements are unaffected by earth voltage and auxiliary earthing resistance. New innovate cord winders make clean up a breeze.

Key Features

  • Three-electrode method, Two-electrode method (Simple Measurement)
  • Wide measurement range for 0 to 1150 Ω, based on EN standard
  • Switchable measurement frequency to reduce the effects of power supply harmonics
  • Dramatically faster setup: Comes with improved earthing rods and cord winders
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply LR6 (AA) Alkaline battery ×6, 1100 times operation (at 30 sec. measurement/ 30 sec. rest cycle)
Included Accessories Auxiliary Earthing Rod L9840 (2 piece set) ×1, Measuring cable L9841 (alligator clip, black 4 m (13.12 ft)), Measurement Cable L9842-11 (yellow 10 m (32.81 ft), equipped with winder), Measurement Cable L9842-22 (red 20 m (65.62 ft), equipped with winder) ×1, LR6 (AA) Alkaline battery ×6, Carrying Case C0106 ×1, Instruction manual ×1
Measurement accuracy ±0.25 Ω (10 Ω) / ±2.5 Ω (100 Ω) / ±25 Ω (1000 Ω)
Dimensions and Weight 164 mm (6.46 in)W × 119 mm (4.69 in)H × 88 mm (3.46 in)D, 760 g (26.8 oz)
Other Functions Auxiliary earth resistance check S (P)/ H©
Measurement Current Three-electrode method: 15 mA rms or less; Two-electrode method: 3 mA rms or less
Resistance Range 10 Ω (0 to 11.5 Ω) / 100 Ω (0 to 115 Ω) / 1000 Ω (0 to 1150 Ω)
Current Frequency Range 575 Hz / 600 Hz
Measurement Method AC potentiometer method, Three-electrode method/ two-electrode method (switchable)
Possible Number of Measurements 1100 times (at 30 sec. measurement/ 30 sec. rest cycle)
Earth Voltage 0 to 30 V, Nominal Deviation: ±3.0 % f.s.
Open Circuit Voltage 50 V AC rms or less
More Information
Attribute Value
Data Sheet Click here to view
