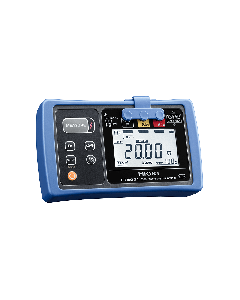

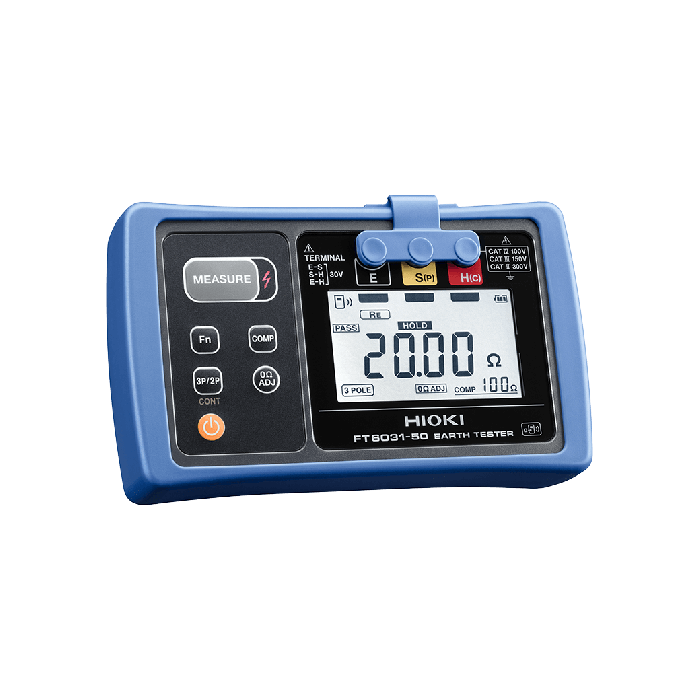

FT6031-50
FT6031-50
Hioki
Earth Tester
Tough and Ready for the Field - IP67 Dustproof and Waterproof
Earthing or grounding of electrical equipment is essential to maintain safety, protecting lives, as well as to prevent damage to equipment. The FT6031-50 is a IP67 dustproof and waterproof two-pole or three-pole ground resistance tester with large, easy-to-read display, highly sensitive earthing rods, and innovative cable winder that significantly reduces the amount of time needed to complete earth resistance tests.
Key Features
- Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT
- Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
- Excellent noise resistance
- IP67 protected – top of the industry
- Test all ground types from Class A to Class D with a single meter
- Wide 0Ω to 2000Ω measurement range
- Minimize cabling time with innovative earthing rods and cable winder
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply | LR6 Alkaline battery ×4 |
| Included Accessories | Auxiliary Earthing Rod L9840 (2 piece set) ×1, Measurement Cable L9841 (black 4 m) ×1, Measurement Cable L9842-11 (yellow 10 m, equipped with winder) ×1, Measurement Cable L9842-22 (red 20 m, equipped with winder) ×1, Carrying Case C0106 ×1, Protector ×1, LR6 Alkaline battery ×4, Instruction manual ×1 |
| Measurement accuracy | ±1.5% rdg ±8 dgt (20 Ω) / ±1.5% rdg ±4 dgt (200 Ω & 2000 Ω) |
| Dimensions and Weight | 185 mm (7.28 in)W × 111 mm (4.37 in)H × 44 mm (1.73 in)D, 570 g (20.1 oz.) (including batteries and protector, excluding terminal covers and other accessories) |
| Other Functions | Live wire warning, zero-adjustment, continuous measurement mode, wireless communication (with Z3210 connected), comparator |
| Dustproof and Waterproof | IP65/IP67 (EN60529) |
| Resistance Range | 20 Ω (0 Ω〜20.00 Ω) / 200 Ω (0 Ω〜200.0 Ω) / 2000 Ω (0 Ω〜2000 Ω) |
| Measurement Method | Two-electrode method/three-electrode method (switchable) |
| Possible Number of Measurements | 500 times (measurement conditions: three-electrode method, measuring 10 Ω at 10-second intervals without Z3210 installed) |
| Earth Voltage | 0〜30.0 V rms / ±2.3% rdg ±8 dgt (50 Hz/60 Hz) / ±1.3% rdg ±4 dgt (DC) |
| Allowable Earth Potential | 25.0 V rms (DC or sine wave) |
