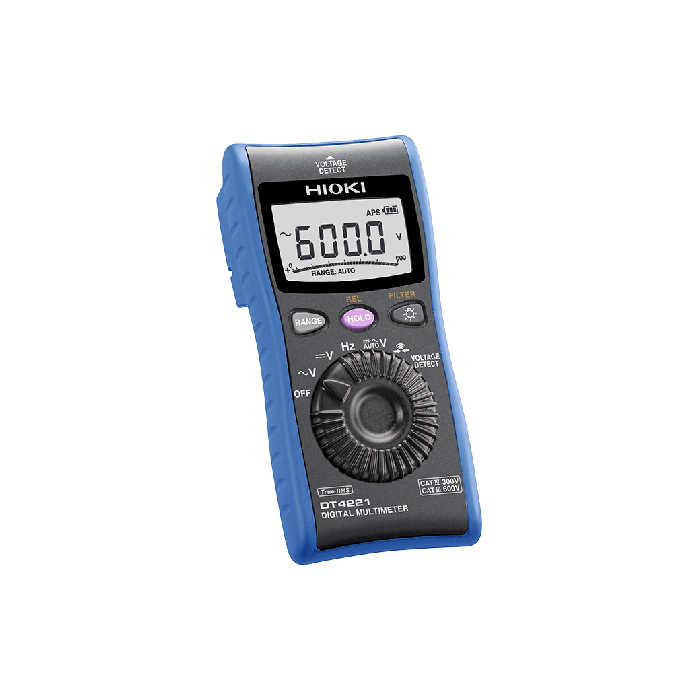

DT4221
DT4221
Hioki
Digital Multimeter
This product is available in 5-7 weeks
Premier Pocket DMM with CAT IV 300 V, CAT III 600 V Safety
The Hioki DT4200 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level. The DT4221 is a pocket-sized digital multimeter designed specifically for electrical work requiring optimal safety, with ±0.5% DC V accuracy and wide 40 Hz to 1 kHz AC V bandwidth.
CAT IV 300 V, CAT III 600 V
Key Features
- Achieving a high level of safety in a compact body and lightweight design
- Resistance and diode testing functions omitted by design in pursuit of added safety (DT4221)
- Voltage detection function (DT4221)
- Robust design capable of withstanding a drop from a height of 1 m
- ±0.5% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics
- Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
- Broad -10°C to 50°C (14°F to 122°F) operating temperature range
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
| Attribute | Value |
|---|---|
| Power Supply | LR03 alkaline battery (40h) |
| Display | 4-digit LCD (6000 digits, bar graph) |
| Dimensions and Weight | 72 × 149 × 38 mm (190 g) |
| Other Functions | Filter, Auto power save, Display hold |
| Accessories | Test lead, Holster, Manual, Battery |
| DC Voltage range | 600.0 mV - 600.0 V (±0.5%) |
| AC Voltage range | 6.000 V - 600.0 V (±1.0%) |
| Frequency Range | 99.99 Hz - 9.999 kHz (±0.1%) |
| Continuity Test | Threshold ON: 25 Ω, OFF: 245 Ω |
| Display Refresh Rates | 5 times/sec (varies by function) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
