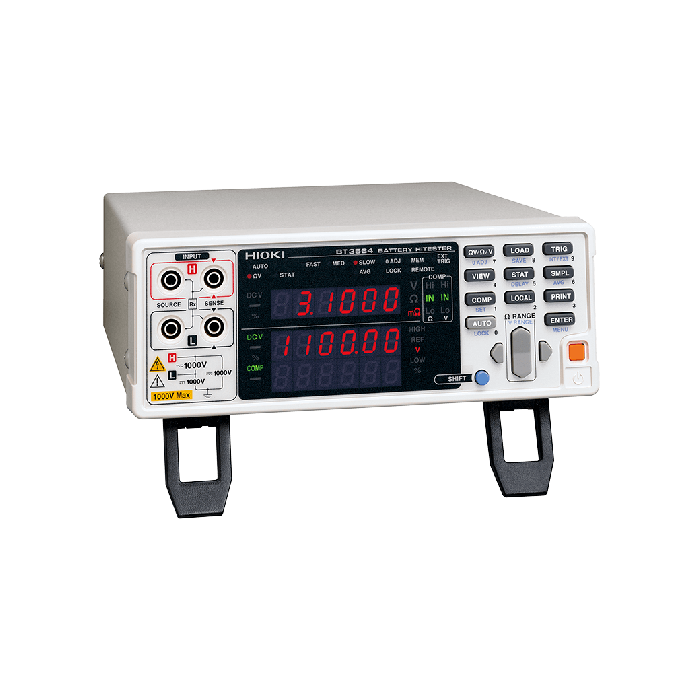

BT3564
BT3564
Hioki
Battery HiTester
This product is available in 5-7 weeks
1000 V Maximum Input Voltage, High-Voltage Battery Tester for Measuring EV and PHEV Battery Packs
Hioki benchtop battery testers support simultaneous high-speed measurement of the internal resistance and battery voltage of EV and PHEV battery packs. The BT3564 Battery HiTester can measure pack voltage and total resistance, as well as bus bar resistance up to 1000 V.
Key Features
- Measure high-voltage battery packs up to 1000 V
- Production line testing of high-voltage battery packs for EV, PHEV
- 0.1 μΩ to 3000 Ω internal resistance range (pack total resistance, bus bar resistance)
- Measure from 0 V DC to ±999.999 V DC (minimum resolution 10 μV)
- Optional measurement probe available for 1000 V and high-voltage battery packs
- Spark discharge reduction function
- Analog output function
Contact our expert team
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
Price
£4,549.71
| Attribute | Value |
|---|---|
| Power Supply | 100 to 240 V AC, 50/60 Hz, 30 VA max. |
| Dimensions and Weight | 10 V DC (resolution: 10 µV) to 1000V DC (resolution: 1 mV), 3 ranges Accuracy: ±0.01 % rdg. ±3 dgt. |
| Included Accessories | Instruction manual ×1, Power cord ×1 , Operating Precautions ×1 |
| Display | 31000 full digits (resistance), 999999 full digits (voltage, 1000 V range: 999999 or 110000), LED |
| Other Functions | Judgment result: Hi/IN/Lo (resistance and voltage judged independently) Setting: Upper and lower limit, Deviation (%) from reference value Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results. Result display, beeper, or external I/O output (open-collector, 35 V, 50 mA DC max.) |
| Interfaces | External I/O, RS-232C, Printer (RS-232C), GP-IB |
| Sampling Rate | FAST: 12 ms, MEDIUM: 35 ms, SLOW: 253 ms (Typ., sampling time depends on supply frequency settings and function.) |
| Analogue Output | Measured resistance (displayed value, from 0 to 3.1 V DC) |
| Resistance Measurement Ranges | 3 mΩ (max. display 3.1000 mΩ, resolution 0.1 μΩ) to 3 kΩ (max. display 3.1000 kΩ, resolution 0.1 Ω), 7 ranges Accuracy: ±0.5 % rdg. ±5 dgt. (30 mΩ to 3 kΩ range), ±0.5 % rdg. ±10 dgt. (3 mΩ range) Testing source frequency: 1 kHz ±0.2 Hz, testing current: 100 mA (3 mΩ range) to 10 μA (3.000 kΩ range) Open terminal Voltage: 25 V peak (3/30 mΩ ranges), 7 V peak (300 mΩ range), 4 V peak (3 Ω to 3.000 kΩ range) |
| Voltage Measurement Ranges | 10 V DC (resolution: 10 µV) to 1000V DC (resolution: 1 mV), 3 ranges Accuracy: ±0.01 % rdg. ±3 dgt. |
| Measurement Time | Response time + sampling time (Response time for both resistance and voltage are reference value of about 700 ms, depends on measurement object.) |
| Comparator Functions | Judgment result: Hi/IN/Lo (resistance and voltage judged independently) Setting: Upper and lower limit, Deviation (%) from reference value Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results. Result display, beeper, or external I/O output (open-collector, 35 V, 50 mA DC max.) |
| Max. Applied Measurement Voltage | ± 1000 VDC rated input voltage ± 1000 VDC max. rated voltage to earth |
