BC-01 30 – 200 MHz
BC-01
Narda Safety Test Solutions

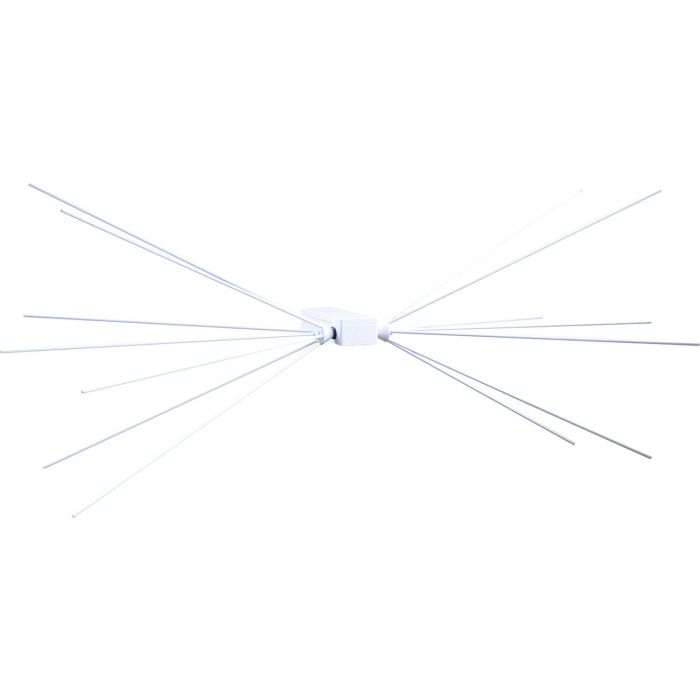

Biconical Antenna
The BC-01 Bi-Conical Antenna is tailored for radiated EMC applications, versatile with any receiver or spectrum Analyser.
Specifically optimised for EMI receivers like 9030 and 9010/03P, it seamlessly mounts on support structures.
This antenna's direct connection to the receiver ensures accuracy by minimizing uncertainties from coaxial cable attenuation and dispersion. Its design and compatibility make it an optimal choice for reliable EMC testing, offering precision and efficiency in measuring electromagnetic emissions.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 30 to 200 MHz |
| Gain | -15 +2 dBi typical |
| Antenna Factor | 8 to 14 dB/m typical |
| Max Input Power | 100 W |
| Construction | Aluminium |
| Impedance | 50 Ω nominal |
| Colour | RAL 7035 |
| Dimensions | 65 x 65 x 137 cm |
| Weight | 1.8 kg |
| Connector | N female |
