L2-16B
L2-16B
Narda Safety Test Solutions
Two Lines Single Phase 9 KHz – 30 MHz

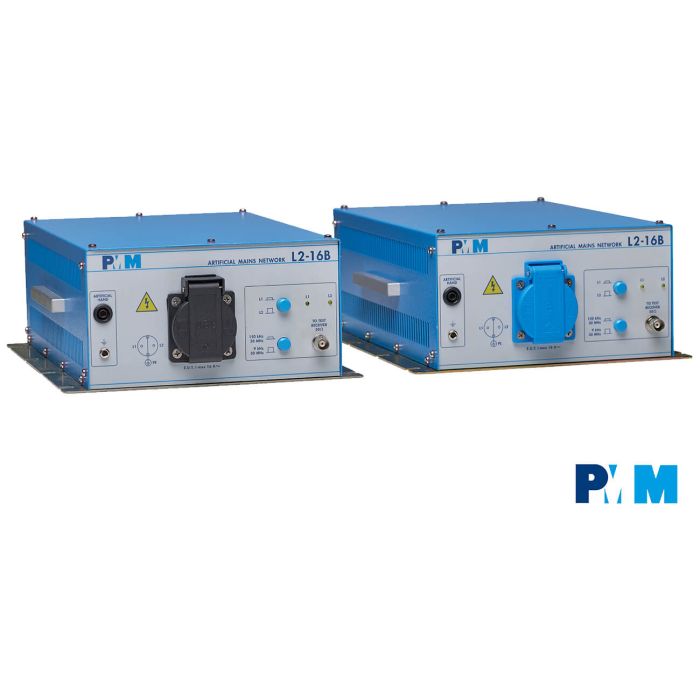

The L2-16B is a single-phase LISN designed for conducted disturbance (RFI) measurements on electrical and electronic equipment up to 16 amperes, the typical rating for most common devices.
It is a two-line V-network with an equivalent circuit of 50 Ω // (5 Ω + 50 μH), equipped with a high-pass filter (150 kHz – 30 MHz), ideal for measurements in the 9 kHz – 30 MHz frequency range.
Compact, rugged, and lightweight, the L2-16B provides an excellent ground plane and has been engineered to offer high performance at a competitive cost. It is fully compatible with all PMM-Narda receivers, such as the PMM ER9000, and can also be used with RF receivers from other manufacturers.
Available in two versions:
00 – with Type F (SCHUKO) socket, standard in Europe. Up to 16 A
01 – with Type B (NEMA 5-15) socket, for U.S. and Japanese markets. Up to 15 A
The L2-16B is fully compliant to:
- CISPR 16-1-2
- VDE 0876
- FCC part 15
- MIL-STD 461F
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 30 MHz |
| Maximum Operating Voltage |
(L/N): 250 Vac (L/PE): 350 Vdc |
| Operating Temperature | -10 °C to +45 °C |
| Main Supply Frequency Range | DC to 60 Hz |
| Dimensions | 230 x 105 x 285 mm |
| Weight | 5.5 kg |
| Continuous Rated Output Current | 16 A |
| Equivalent Circuit | 50 Ω // [5 Ω + 50 µH] with 250 µH choke |
| RF Output Connector | BNC female |
| Test Item | SCHUKO connector |
| Line Plug | IEC 60320 C20 |
| Storage Temperature | -25°C to 75°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
